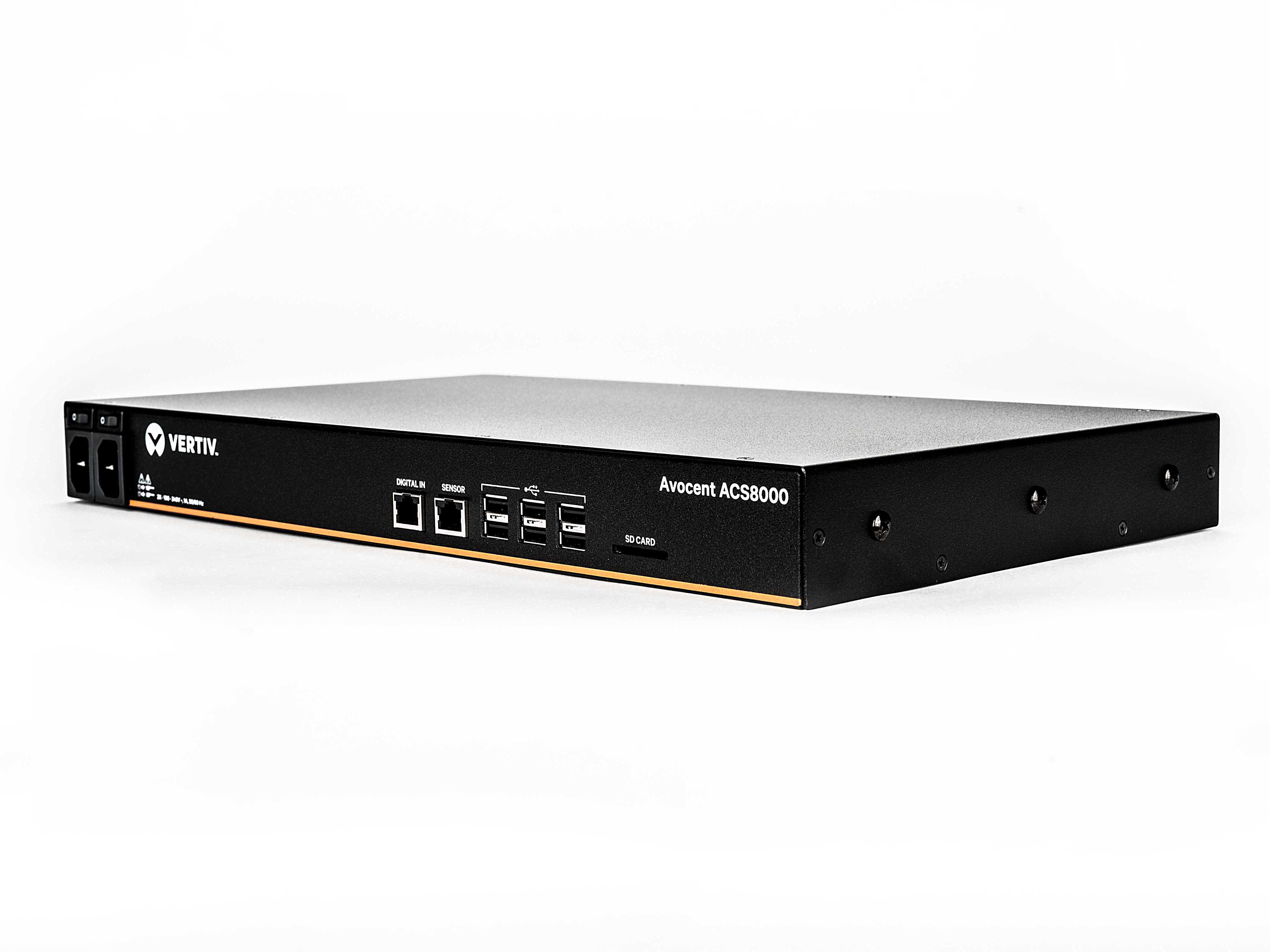

Vertiv ACS 8000 32-Port Dual AC With Modem
Item No:
831173
MPN:
ACS8032MDAC-404
$9,089.00
Payment options
Shipping Information
- ETA 11/09/2099 for shipping
- Pre-order available, shipping ETA 11/09/2099
Store Availability
- ETA 11/09/2099 at Bankstown Store
- ETA 11/09/2099 at Castle Hill Store
- ETA 11/09/2099 at Northmead Store
Shipping Estimate
Vertiv Avocent ACS8032MDAC-404, CLI, HTTP/ HTTPS, SNMP, LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP), 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3,..., RJ-45, C13 coupler, Embedded LINUX
The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).
| Technical details | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Internal modem Device inside a computer, cash register etc. that enables it to communicate over a network. |
|
| Zero Touch Provisioning (ZTP) |
|
| Web-based management Using a website/web application to manage something. |
|
| Temperature sensor |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Management features | |
| Management protocols | CLI, HTTP/ HTTPS, SNMP |
| Security | |
| Authentication method | LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| IP address filtering |
|
| One-time password (OTP) |
|
| Ports & interfaces | |
| Console port | RJ-45 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 32 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 8 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| SFP module slots quantity | 2 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 438.2 x 241.3 x 44.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.4 kg |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 106 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 20 W |
| Power consumption (max) The maximum amount of power used by the device. | 35 W |
| Input current | 0.1 A |
| Number of power supply units | 2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Memory | |
| Flash memory | 16000 MB |
| RAM capacity | 1024 MB |
| RAM type The type of RAM (random access memory) inside the device e.g. DDR3. | DDR3L |
| eMMC capacity | 16 GB |
| Processor | |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Cortex-A9 |
| Processor architecture | ARM Cortex-A9 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 2 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 667 MHz |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
| Other features | |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| SKU | 831173 |
| MPN | ACS8032MDAC-404 |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.vertiv.com/ |
