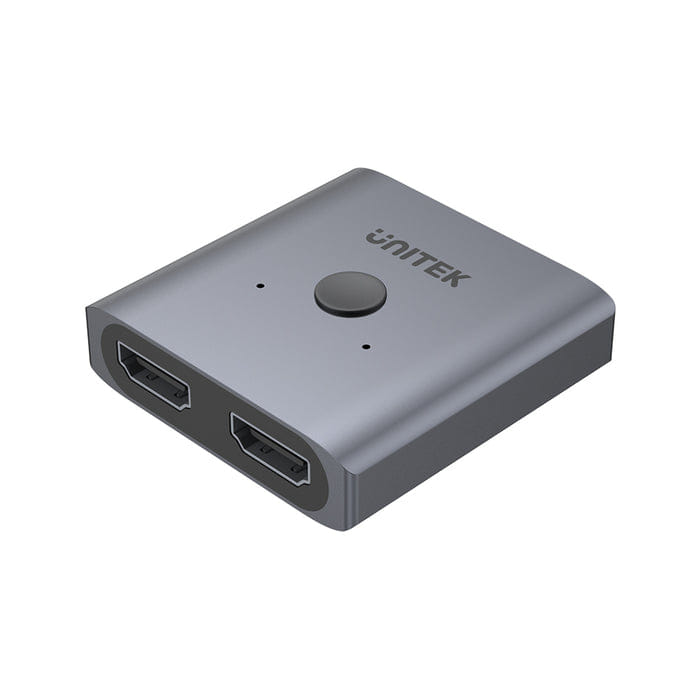

UNITEK V1127A, HDMI, 2x HDMI, 3840 x 2160 pixels, Grey, Aluminium, 4K Ultra HD
This bi-directional 4K HDMI 2.0 switch helps swap the signal instantly. Specification of signal transmission depends on the devices and the cables, 3M or shorter HDMI2.0 cable is suggested. With Solid aluminum-alloy housing and premium construction.
Product Features:
Bi-directional usage, available for connecting 2 sources and 1 HDMI display, or 1 source and 2 HDMI displays.
Swap the signal instantly between 2 sources or 2 displays by simply pressing the button.
Support up to 4K Ultra-HD resolution. Backward compatible.
Specification of signal transmission depends on the devices and the cables. 3M or shorter HDMI2.0 cable (AWG26 or thicker conductor) is suggested for 4K@60Hz, and 10M or shorter for 4K output.
LED indicator for identifying the working status expression of the ports.
Solid aluminum-alloy housing to ensures durability.
Premium construction, to prevent damage to the unit from static electricity, and to ensures well-functioning within +80C/-40 C temperature.
Plug and play. No power adapter needed.
Product Features:
Bi-directional usage, available for connecting 2 sources and 1 HDMI display, or 1 source and 2 HDMI displays.
Swap the signal instantly between 2 sources or 2 displays by simply pressing the button.
Support up to 4K Ultra-HD resolution. Backward compatible.
Specification of signal transmission depends on the devices and the cables. 3M or shorter HDMI2.0 cable (AWG26 or thicker conductor) is suggested for 4K@60Hz, and 10M or shorter for 4K output.
LED indicator for identifying the working status expression of the ports.
Solid aluminum-alloy housing to ensures durability.
Premium construction, to prevent damage to the unit from static electricity, and to ensures well-functioning within +80C/-40 C temperature.
Plug and play. No power adapter needed.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| Video ports quantity The number of ports (sockets) for video input or output. | 3 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Housing material What the casing of the product is made of. | Aluminium |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| 3D The device can be used with 3D technology. |
 |
| Maximum refresh rate | 60 Hz |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators | Status |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 52.6 mm |
| Depth The distance from the front to the back of something. | 52.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 80 °C |
| SKU | 797027 |
| MPN | V1127A |
| Brand | Unitek |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.unitek-products.com/ |
