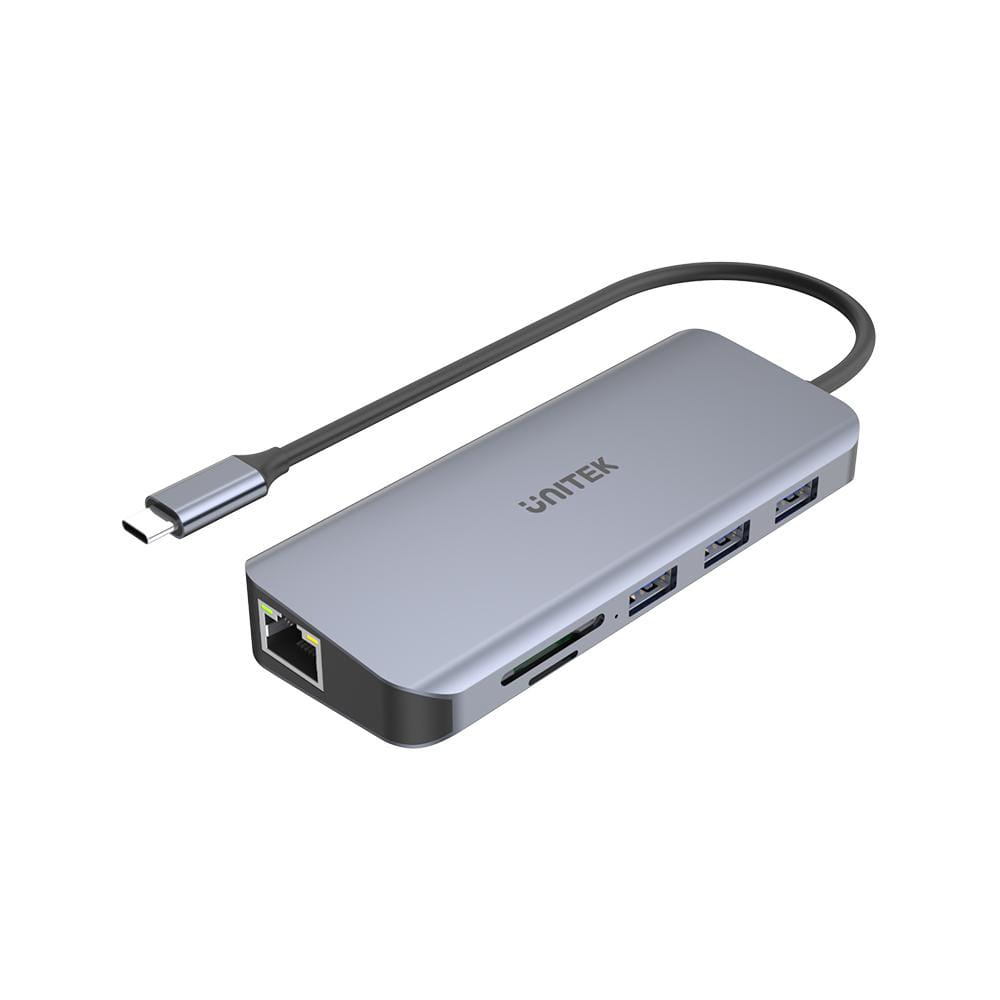

UNITEK D1026B, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Grey, MicroSD (TransFlash), SD, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Aluminium, 120 mm
This 9-in-1 USB-C hub combines three USB 3.1 Gen1 5Gbps ports, dual display outputs, a Gigabit Ethernet RJ45, dual card readers, plus the forceful Power Delivery 100W charging via the USB-C. HDMI supports up to 4K 30Hz Ultra HD. When connecting with both HDMI and VGA, video-out will be at a lower resolution.
- 3 USB-A ports for easy expansion. With USB3.1 Gen 5Gbps data transfer rate. Backward compatible with USB2.0/1.1.
- With the USB-C Power Delivery port, supporting max. 100W/20V5A charging to your upstream computer.
- USB PD power actual output depends on your power adapter.
- Support HDMI at 4K@30Hz Ultra HD video output, with HDCP2.2 specification.
- Support VGA with Full HD 1080P@60Hz.
- When connected with the HDMI and VGA simultaneously, the maximum resolution of both will be at 1080P.
- With the memory card readers, supporting both 24mm size and 11mm size memory card simultaneously, with SDHC / SDXC specification up to 2TB capacity.
- Gigabit Ethernet provides a fast and stable internet connection.
- Support IPv4/IPv6, COE, Wake-on-LAN, full and half-duplex, automatic flip and flow control. Fully support IEEE 802.3 standard, compatible with 10/100/1000Mbps data transfer.
- USB-C connector allows you to connect with the devices equipped with Thunderbolt 3 port or USB-C port that
- supports data transfer function and DP Alt mode.
- 3 USB-A ports for easy expansion. With USB3.1 Gen 5Gbps data transfer rate. Backward compatible with USB2.0/1.1.
- With the USB-C Power Delivery port, supporting max. 100W/20V5A charging to your upstream computer.
- USB PD power actual output depends on your power adapter.
- Support HDMI at 4K@30Hz Ultra HD video output, with HDCP2.2 specification.
- Support VGA with Full HD 1080P@60Hz.
- When connected with the HDMI and VGA simultaneously, the maximum resolution of both will be at 1080P.
- With the memory card readers, supporting both 24mm size and 11mm size memory card simultaneously, with SDHC / SDXC specification up to 2TB capacity.
- Gigabit Ethernet provides a fast and stable internet connection.
- Support IPv4/IPv6, COE, Wake-on-LAN, full and half-duplex, automatic flip and flow control. Fully support IEEE 802.3 standard, compatible with 10/100/1000Mbps data transfer.
- USB-C connector allows you to connect with the devices equipped with Thunderbolt 3 port or USB-C port that
- supports data transfer function and DP Alt mode.
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Network | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Housing material What the casing of the product is made of. | Aluminium |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 18 mm |
| Height The measurement of the product from head to foot or from base to top. | 50 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual |
|
| SKU | 816615 |
| MPN | D1026B |
| Brand | Unitek |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.unitek-products.com/ |
