Product Overview
Vivid 4K 60Hz Ultra HD Aluminium-alloy exterior 5Gbps Data Power Delivery (USB PD) up to 100W

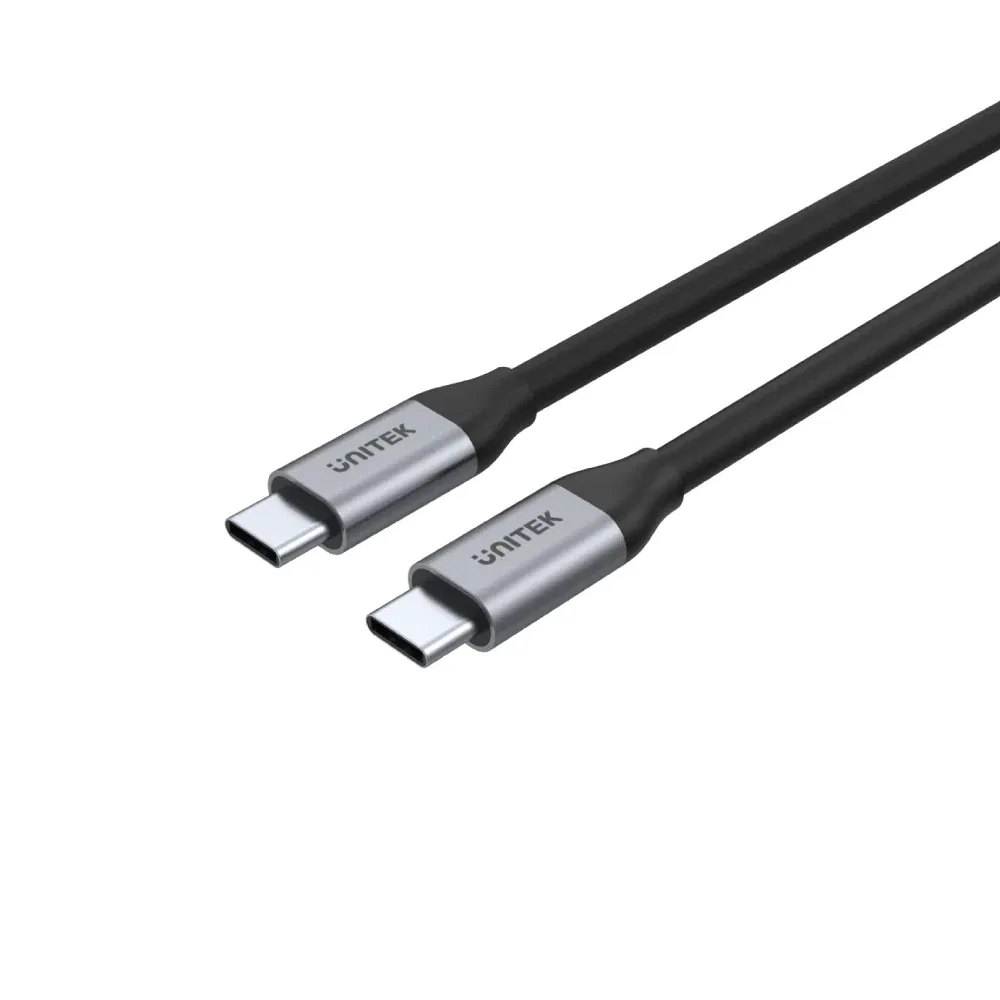

This cable helps simply connect any USB-C gadget, charger or the TV or monitor with your USB-C (Thunderbolt 3 equipped or DisplayPort Alternate Mode equipped) equipped devices, not only PC or laptop but also iPad Pro, tablet, or even smartphone.
Products Features
A single cable which satisfies your needs of maximum 100W fast charging, 4K display output and 5Gbps SuperSpeed data synchronization
With USB3.0 specification, the data transfer rate up to 5Gbps. Backward compatible with 2.0/1.1
With the USB-C Power Delivery (USB PD), supporting maximum 100W/20V5A charging to your upstream computer including MacBook Pro 2019
USB PD power actual output depends on your power adapter
An integrated E-MARK chip supports the safety of USB PD 100W and offers a fast, stable and efficient charging
Support audio & video output from the computer to monitor or TV with up to 4K@60Hz performance
USB-C connector allows you to connect with USB-C equipped computer, tablet and smartphone
Equipped with Thunderbolt 3 port or USB-C port that supports data transfer function and DisplayPort Alt Mode (DP Alt Mode)
Made with strong aluminium-alloy housing for durability
Plug and play, no driver required
| Features | |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 This is the first connector in the device. | USB C |
| Connector 2 This is the second connector in the device. | USB C |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector housing material | Aluminum |
| Maximum data transfer rate | 5 Gbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| USB Power Delivery |
|
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 20 V |
| Input current (max) | 5 A |
| Output voltage | 20 V |
| Output current (max) | 5 A |
| Weight & dimensions | |
| Cable length How long the cable is. | 2 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| SKU | 797297 |
| MPN | C14091ABK |
| Brand | Unitek |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.unitek-products.com/ |
