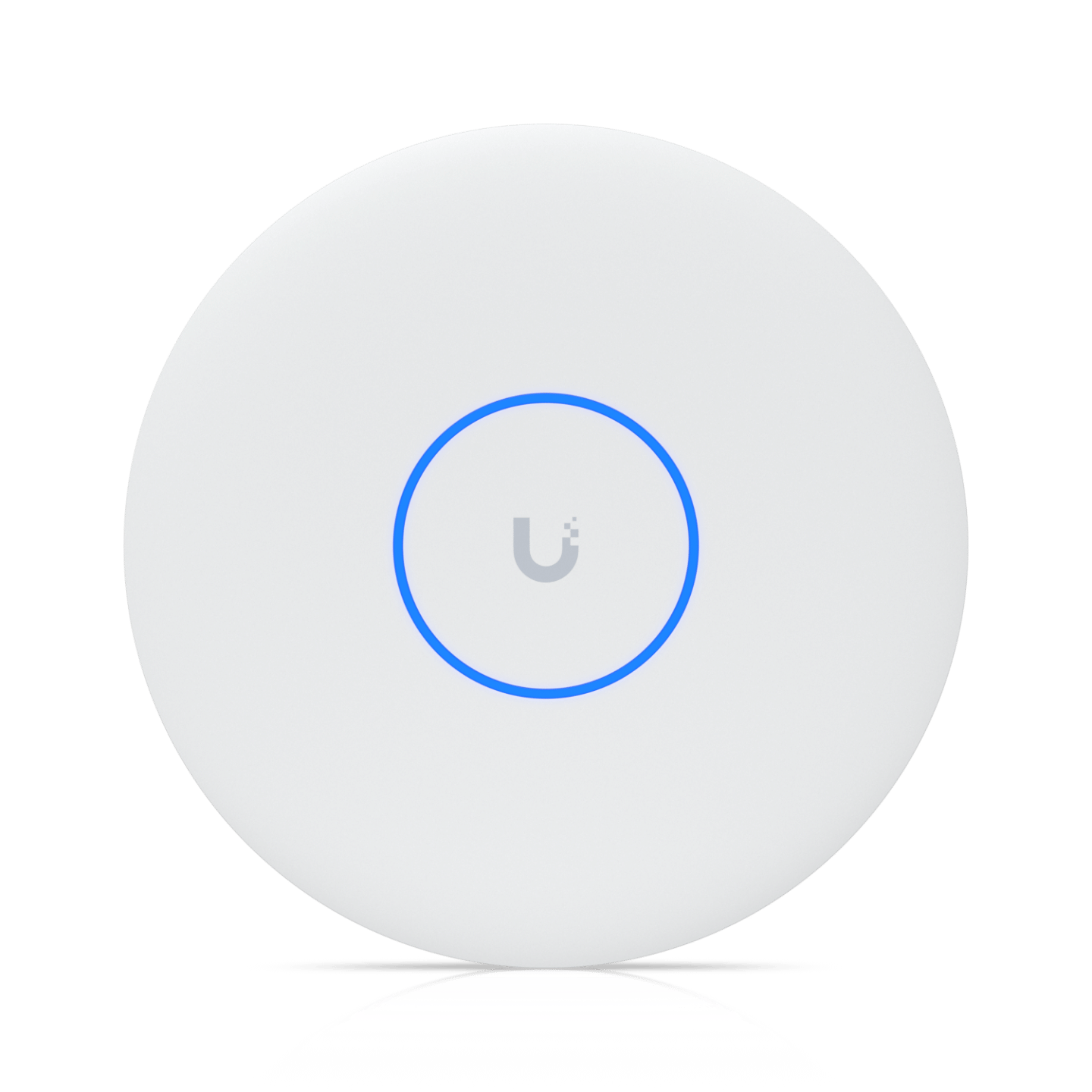

Ubiquiti U7-Pro-XGS UniFi Wi-Fi7 10GbE Indoor Access Point

Item No:
817812
MPN:
U7-Pro-XGS
$699.00

Ubiquiti U7-Pro-XGS UniFi Wi-Fi7 10GbE Indoor Access Point

$699.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-4 business days
Store Availability
  • 3-5 business days at Bankstown Store
  • 3-5 business days at Castle Hill Store
  • 2-4 business days at Northmead Store
Shipping Estimate
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Features
2.4 GHz
5 GHz
6 GHz
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 8600 Mbit/s
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 8600 Mbit/s
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 1000,2500,5000,10000 Mbit/s
Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. 2.4, 5, 6 GHz
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Coverage area 160 m²
Number of users The number of people that use or can use this product. 500 user(s)
MIMO
MIMO type Multi User MIMO
Spatial streams 8
Fit AP mode features Hotspot 2.0
Fast roaming
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Rate limiting
Wireless meshing
Band steering
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 29 dBmW
Maximum Tx power (6 GHz) 24 dBmW
Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. PPSK
Management features
Access point management Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
Power consumption (max) The maximum amount of power used by the device. 29 W
Design
Placement Where the product can be placed e.g. floor, wall. Ceiling, Wall
Product colour The colour e.g. red, blue, green, black, white. White
Housing material What the casing of the product is made of. Metal, Polycarbonate (PC)
Reset button
LED indicators Status
Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal. Internal
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. 6 dBi
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Width The measurement or extent of something from side to side. 215 mm
Depth The distance from the front to the back of something. 32.5 mm
Height The measurement of the product from head to foot or from base to top. 215 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 800 g
Packaging content
Quantity per pack 1 pc(s)
Mounting kit
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -30 - 40 °C
More Information
SKU 817812
MPN U7-Pro-XGS
Brand Ubiquiti
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.ui.com/
