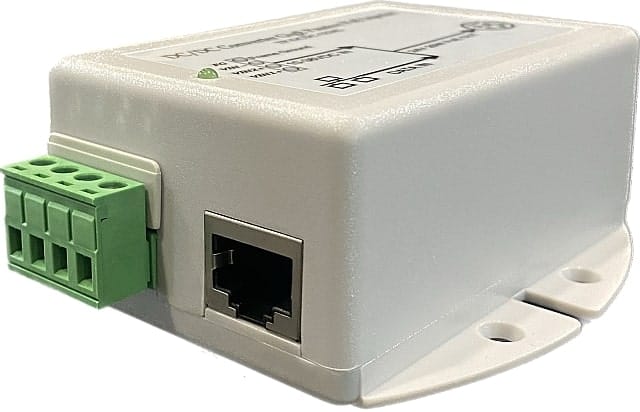

Ubiquiti Tycon Power TP-DCDC-4824G, Converter +/-40-60VDC to 24VDC (24W), Gigabit Passive PoE Insertion. Isolated, Shielded, Surge Protected
Tycon Power DC to DC Converter with an input voltage range of +/- 40-60VDC
Description:
The TP-DCDC-4824G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.
SKU:TP-DCDC-4824G
SPEC SHEET:Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING:Click Here
Features
Input Voltage 48VDC (Range 36-72VDC)
Passive PoE Output 24VDC
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 24W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size " Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
48V Battery Systems, Vehicle Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
Description:
The TP-DCDC-4824G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.
SKU:TP-DCDC-4824G
SPEC SHEET:Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING:Click Here
Features
Input Voltage 48VDC (Range 36-72VDC)
Passive PoE Output 24VDC
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 24W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size " Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
48V Battery Systems, Vehicle Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
| SKU | 759278 |
| MPN | TP-DCDC-4824G |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Adapter Type | Power Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
