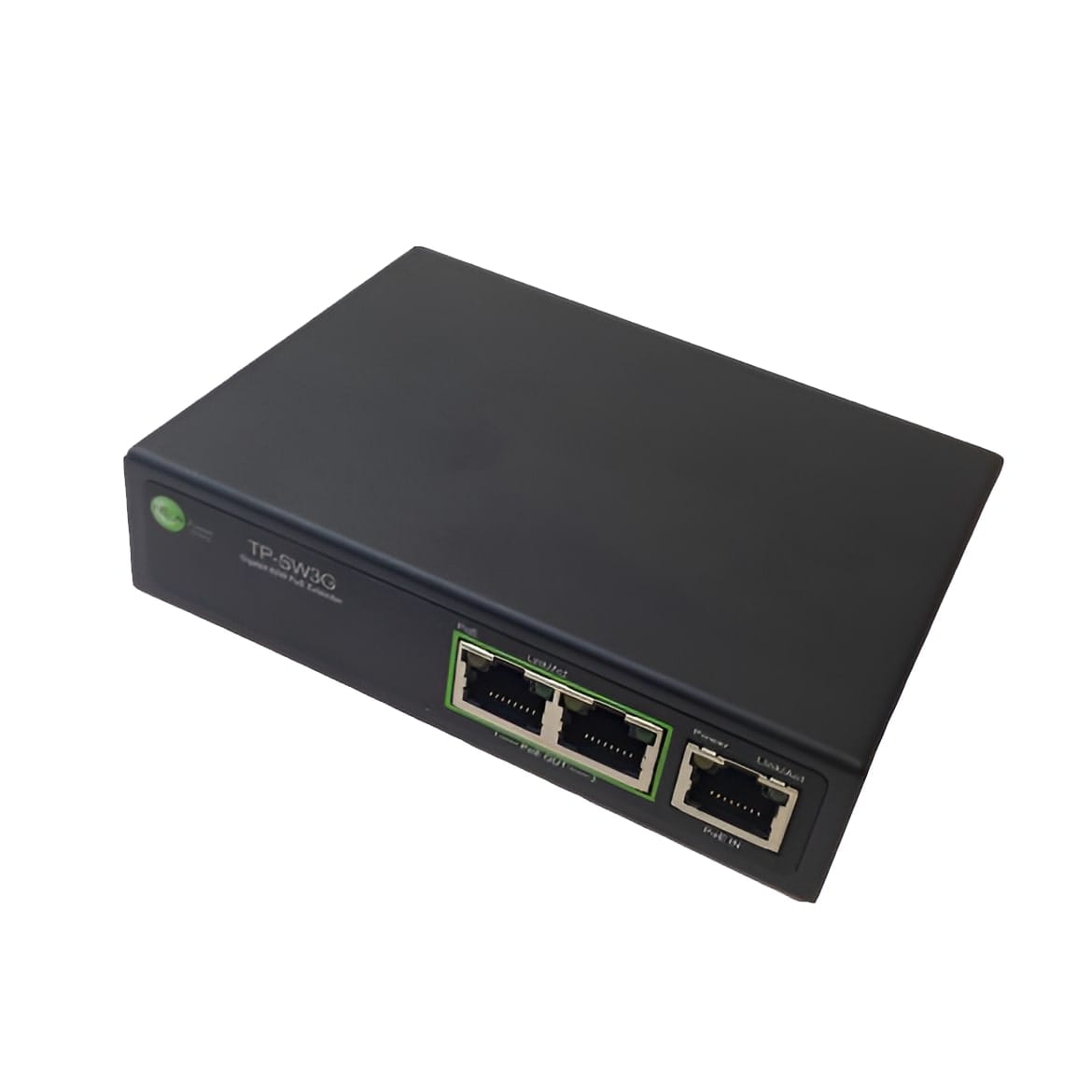

Ubiquiti Tycon Power, TP-SW3G, 3 Port GigE 802.3af/at PoE Unmanaged Switch, 802.3af/at or Passive PoE 2/4pair Input, Dual 802.3at PoE Output
Tycon Power 3 Port 60W Gigabit PoE Extender. IEEE802.3af/at, it accepts 60W (or passive POE) and provides 2x 30w on each port
Description:
The TP-SW3G Power over Ethernet (PoE) 3 Port Gigabit switches offered by Tycon are fully automatic high speed Ethernet switches with up to 30W of PoE power per port.
The unit accepts Gigabit data and power via PoE into the RJ45 PoE In port. The PoE In port is compatible with IEEE802.3af, IEEE802.3at and IEEE802.3at 4 pair (60W). It can also accept 42-57VDC Passive PoE. There are two fully compliant 802.3af/at Gigabit PoE Out ports. These ports are capable of up to 30W per port and 100m (330ft) distance.
Multiple TP-SW3G can be strung together to provide effective distances up to about 300m depending on loads. No extra power is required as the units are powered over PoE. The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the case.
SKU:TP-SW3G
SPEC SHEET:Click Here
USER GUIDE:Click Here
Features
3 Gigabit Ports, Easy Plug and Play Operation
Extends the range of PoE and Ethernet an additional 100 meters or more
Compatible with IEEE802.3af and IEEE802.3at and IEEE802.3at 4 Pair (60W)
No Additional Power Supply is Required
Built-in Surge Protection
Automatic MDI/MDI-X Crossover
Automatic Speed and Duplex Sensing
Low Self Power and High Temperature Operation
CE and FCC Certification
Compact Desktop or Wall Mount Design and Compatible with DIN Rail Adapters
I.T.E. Power Supply, UL Listed
Applications
Add another PoE and Data Port without running more Ethernet Cable
Extend Ethernet and PoE an additional 100 meters per each TP-SW3G
Description:
The TP-SW3G Power over Ethernet (PoE) 3 Port Gigabit switches offered by Tycon are fully automatic high speed Ethernet switches with up to 30W of PoE power per port.
The unit accepts Gigabit data and power via PoE into the RJ45 PoE In port. The PoE In port is compatible with IEEE802.3af, IEEE802.3at and IEEE802.3at 4 pair (60W). It can also accept 42-57VDC Passive PoE. There are two fully compliant 802.3af/at Gigabit PoE Out ports. These ports are capable of up to 30W per port and 100m (330ft) distance.
Multiple TP-SW3G can be strung together to provide effective distances up to about 300m depending on loads. No extra power is required as the units are powered over PoE. The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the case.
SKU:TP-SW3G
SPEC SHEET:Click Here
USER GUIDE:Click Here
Features
3 Gigabit Ports, Easy Plug and Play Operation
Extends the range of PoE and Ethernet an additional 100 meters or more
Compatible with IEEE802.3af and IEEE802.3at and IEEE802.3at 4 Pair (60W)
No Additional Power Supply is Required
Built-in Surge Protection
Automatic MDI/MDI-X Crossover
Automatic Speed and Duplex Sensing
Low Self Power and High Temperature Operation
CE and FCC Certification
Compact Desktop or Wall Mount Design and Compatible with DIN Rail Adapters
I.T.E. Power Supply, UL Listed
Applications
Add another PoE and Data Port without running more Ethernet Cable
Extend Ethernet and PoE an additional 100 meters per each TP-SW3G
| SKU | 759281 |
| MPN | TP-SW3G |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
