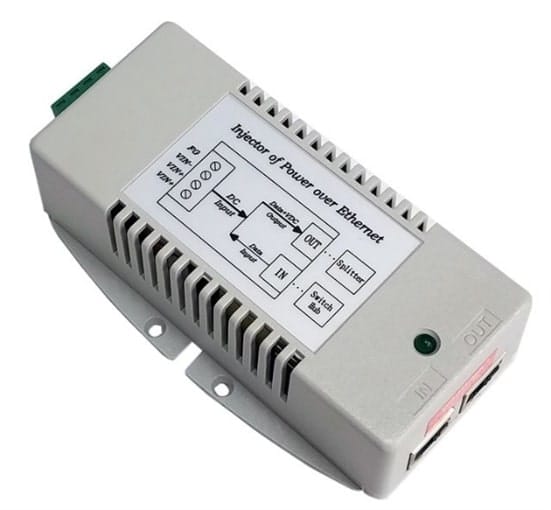

Ubiquiti Tycon Power 18-36VDC Input 56VDC Output 70W 4-Pair Power Supply

Tycon Power 18-36VDC In, 56VDC Out 70W 4 Pair High Power DC to DC Converter and 802.3at PoE Inserter, for Axis Q60 PTZ cameras, UPOE Compatible

Description:
The TP-DCDC-2456GD-VHP is a special, very high power, DC to DC converter / PoE inserter designed and qualified for use with Axis outdoor PTZ security cameras, and Cisco's UPOE standards. The DC-DC converter supplies 35W per PoE channel. One PoE channel is using pins 4,5,7,8 and the other PoE channel utilizes pins 1,2,3,6. By directing the power onto separate PoE channels, the device can achieve 70W total supplied power to the end device. The units have separate LED indicators for indicating which 802.3at channel is being used by the client. The RIGHT LED indicates PoE Channel 1 and the LEFT LED indicates PoE Channel 2
The TP-DCDC-2456GD-VHP has been qualified by Axis to be used with many models of PTZ cameras. The unit can be used with any 802.3at device as it will supply 35W to any 802.3at PoE channel detected. If two channels are detected on the client then 70W power will be supplied.

SKU: TP-DCDC-2456GD-VHP

SPEC SHEET:Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING:Click Here

Features
Input Voltage 24VDC (Range 18-36VDC)
2 Channel 802.3at 56VDC PoE Output
High Power to 70W (35W per PoE Channel)
Dual DC Inputs for connecting 2 power sources
Gigabit Data Thruput
Low self-consumption power (<2W)
Short Circuit, Over Current and Reverse/Over Voltage Protection
High-Temperature Operation
I.T.E. Power Supply, UL Listed

Applications
24VDC Remote Power Systems
Axis PTZ Surveillance Cameras
802.3at High Power Applications.
PoE Lighting Applications
