Ubiquiti Tycon Power 10-60VDC Wire Term Input, 56V 70W 802.3at4pair GigE PoE Ins, PoE Pinout: 3,4,5,6V+;1,2,7,8V-,Dual 802.3at Detect, Isolated

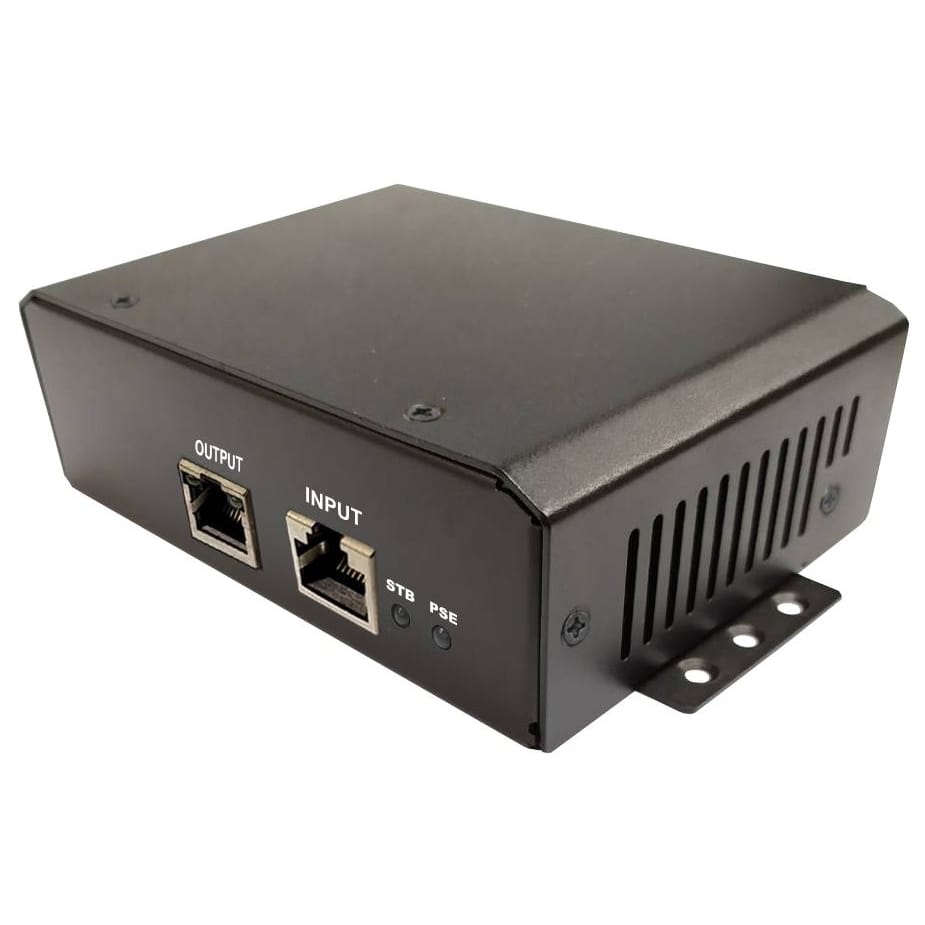

Tycon Power TP-DCDC-1256G-VHP 10-60VDC IN. 56V 70W 4 Pair Hi Power Passive PoE OUT. DC to DC Converter and Gigabit Passive PoE Injector
Description:
The 5 Gigabit compatible TP-DC-1256G-VHP and TP-DC-1256GD-VHP are very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive or active PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires (4 Pair). The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input/output is isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload. The units have a metal housing and come complete with a DIN Rail mounting kit for mounting to a standard DIN rai
SKU: TP-DCDC-1256G-VHP
SPEC SHEET:Click Here
USER GUIDE:Click Here
Features
Input Voltage 10VDC to 60VDC
8 wire (4 Pair) 56VDC High PoE Output
High Power Output to 70W
Dual DC Inputs for Connecting 2 Power Sources
5 Gigabit Data Throughput
Low Voltage Disconnect Feature
Short Circuit, Over Current and Reverse/Over Voltage Protection
Industrial Temperature Range to 70C
Applications
12VDC / 24VDC Remote Power Systems
48VDC or -48VDC Remote Power Systems
Ubiquiti airFiber Antennas
Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
High PoE 4 Pair Powered Cameras and Radio s
Description:
The 5 Gigabit compatible TP-DC-1256G-VHP and TP-DC-1256GD-VHP are very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive or active PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires (4 Pair). The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input/output is isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload. The units have a metal housing and come complete with a DIN Rail mounting kit for mounting to a standard DIN rai
SKU: TP-DCDC-1256G-VHP
SPEC SHEET:Click Here
USER GUIDE:Click Here
Features
Input Voltage 10VDC to 60VDC
8 wire (4 Pair) 56VDC High PoE Output
High Power Output to 70W
Dual DC Inputs for Connecting 2 Power Sources
5 Gigabit Data Throughput
Low Voltage Disconnect Feature
Short Circuit, Over Current and Reverse/Over Voltage Protection
Industrial Temperature Range to 70C
Applications
12VDC / 24VDC Remote Power Systems
48VDC or -48VDC Remote Power Systems
Ubiquiti airFiber Antennas
Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
High PoE 4 Pair Powered Cameras and Radio s
| SKU | 759269 |
| MPN | TP-DCDC-1256GD-VHP |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Adapter Type | Power Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
