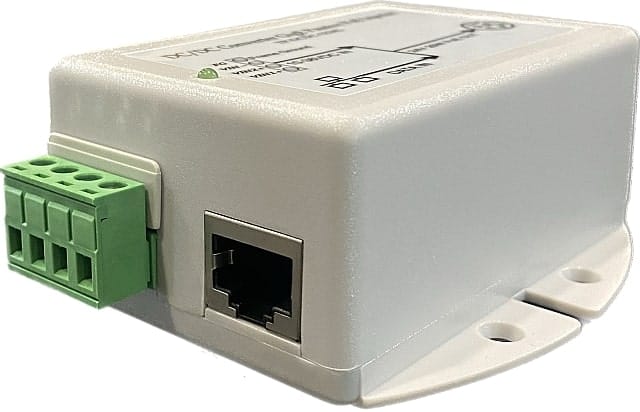

Ubiquiti Tycon Power 10-36VDC Wire Terminal IN, 48V 16.8W OUT, DC to DC Converter and 802.3af Mode B POE Inserter, Shielded and Surge Protected
Tycon Power 10-36VDC Input, 48V 802.3af PoE Output, 17W
Description:
It is DC to DC converters offered by Tycon Power is a low cost and high reliability solution for those requiring 48VDC Power over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 48VDC to the CAT5/6 Ethernet cable. The output is regulated 48VDC from an input voltage between 9VDC and 36VDC.
They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). Other IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake.The DCDC converters are DIN rail mountable using DIN Rail adaptors pn: DIN-ClipKit-UNI
SKU: TP-DCDC-1248D
SPEC SHEET:Click Here
USER GUIDE: Click Here
DIMENSIONAL DRAWING: Click Here
Features
Input Voltage 9-36VDC; Output 48VDC
IEEE 802.3af compliant model
Dual Inputs for connecting 2 power sources
Integrated 10/100MB POE Inserter
High Power up to 17W
Short Circuit, Over Current and Reverse/Over Voltage Protection
High Temperature Operation
Compact size " Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
12V / 24V Battery Systems
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
PoE Lighting Applications
Description:
It is DC to DC converters offered by Tycon Power is a low cost and high reliability solution for those requiring 48VDC Power over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 48VDC to the CAT5/6 Ethernet cable. The output is regulated 48VDC from an input voltage between 9VDC and 36VDC.
They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). Other IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake.The DCDC converters are DIN rail mountable using DIN Rail adaptors pn: DIN-ClipKit-UNI
SKU: TP-DCDC-1248D
SPEC SHEET:Click Here
USER GUIDE: Click Here
DIMENSIONAL DRAWING: Click Here
Features
Input Voltage 9-36VDC; Output 48VDC
IEEE 802.3af compliant model
Dual Inputs for connecting 2 power sources
Integrated 10/100MB POE Inserter
High Power up to 17W
Short Circuit, Over Current and Reverse/Over Voltage Protection
High Temperature Operation
Compact size " Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
12V / 24V Battery Systems
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
PoE Lighting Applications
| SKU | 759260 |
| MPN | TP-DCDC-1248D |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Adapter Type | Power Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
