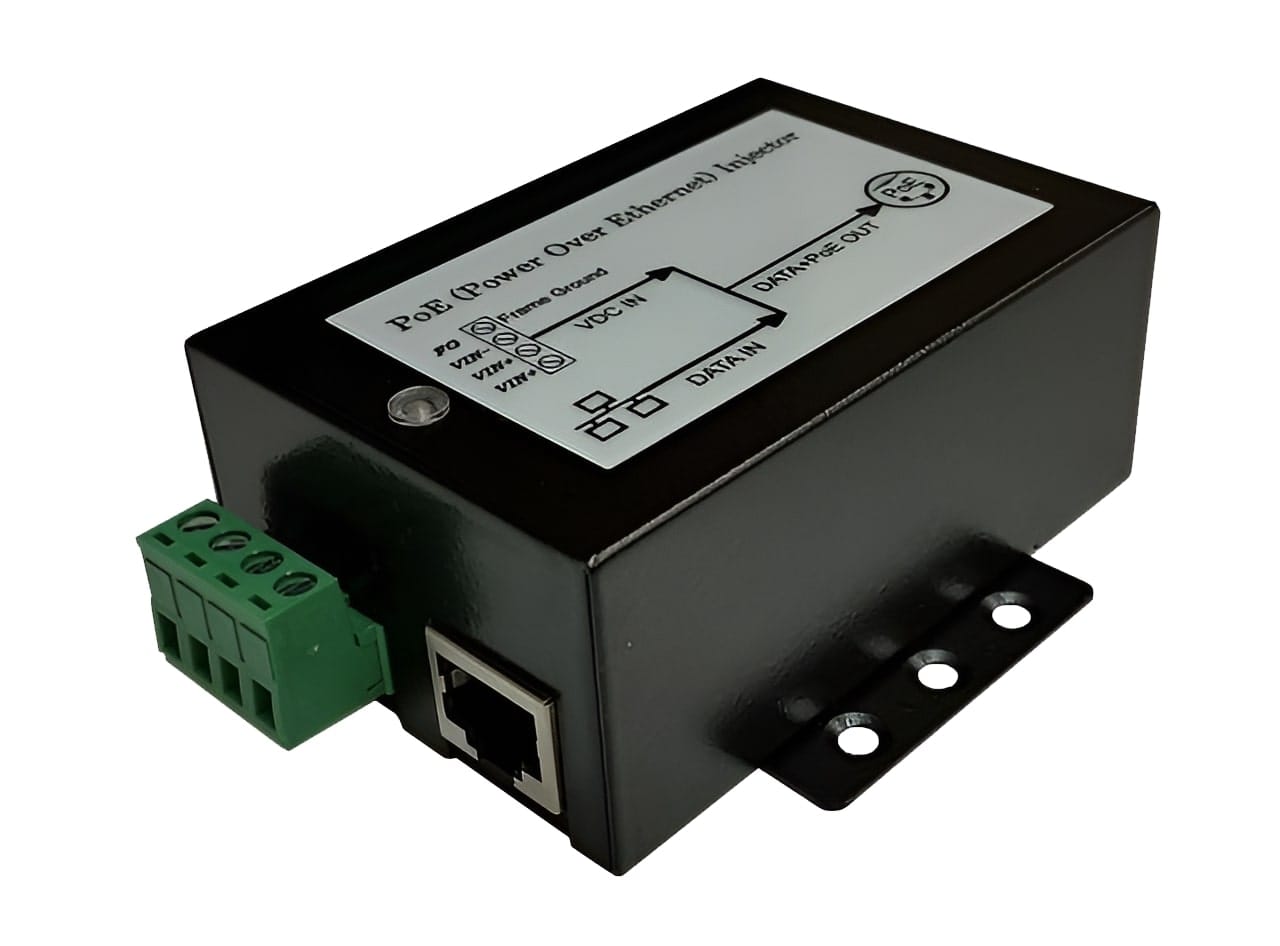

Ubiquiti Tycon Power 10-36VDC Wire Terminal IN, 48V 16.8W OUT, DC to DC Converter and 802.3af Mode B Gigabit POE Inserter
Tycon Power 10-15VDC Input, 48V 802.3af Gigabit PoE Output, 17W
Description:
The TP-DCDC-1248GD-M offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.
They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.
SKU:TP-DCDC-1248GD-M
SPEC SHEET:Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING:Click Here
Features
Input Voltage 12VDC or 24VDC (Range 9-36VDC)
IEEE 802.3af Compliant
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 17W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size " Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
12V / 24V Battery Systems, Vehicle Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
PoE Lighting Applications
Description:
The TP-DCDC-1248GD-M offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.
They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.
SKU:TP-DCDC-1248GD-M
SPEC SHEET:Click Here
USER GUIDE:Click Here
DIMENSIONAL DRAWING:Click Here
Features
Input Voltage 12VDC or 24VDC (Range 9-36VDC)
IEEE 802.3af Compliant
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 17W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size " Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
12V / 24V Battery Systems, Vehicle Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
PoE Lighting Applications
| SKU | 759263 |
| MPN | TP-DCDC-1248GD-M |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Adapter Type | Power Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
