Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.

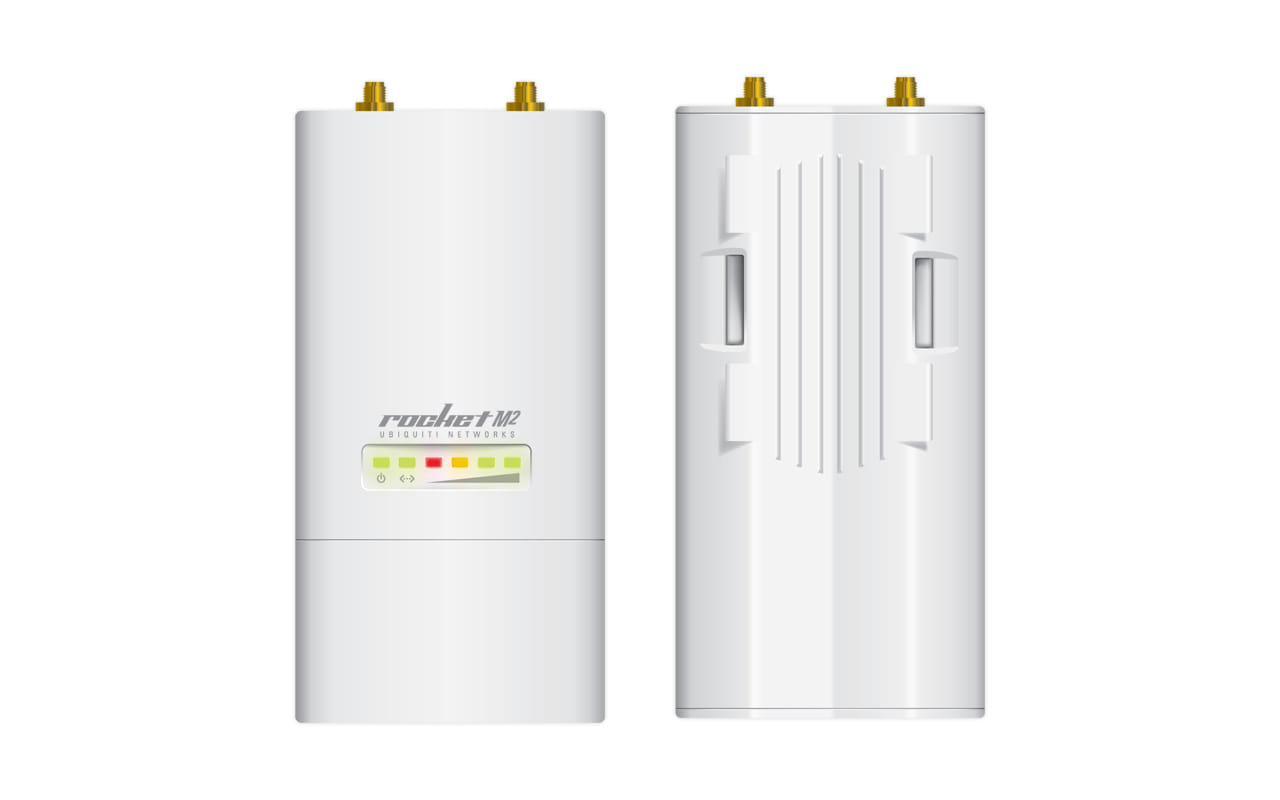

Ubiquiti Rocket M2 2.4Ghz airMAX BaseStation (ROCKETM2)
- Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.
| Features | |
| 2.4 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 150 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.412 - 2.462 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 50000 m |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 24 V |
| Input current | 1 A |
| Output power description | 28dBm |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6.5 W |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Certification | FCC Part 15.247, IC RS210, CE RoHS |
| Internal The product is built in. |
 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-SMA |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor model The model number for the processor in a computer. | Qualcomm Atheros |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 400 MHz |
| Processor architecture | MIPS 24Kc |
| Flash memory | 8 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 64 MB |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 75 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 30 mm |
| Height The measurement of the product from head to foot or from base to top. | 170 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 500 g |
| SKU | 290115 |
| MPN | ROCKETM2 |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
