Ubiquiti locoM5 5GHz 13dBi Indoor/Outdoor airMAX CPE

Item No:
227689
MPN:
LOCOM5
$129.00 $119.00 While stocks last!

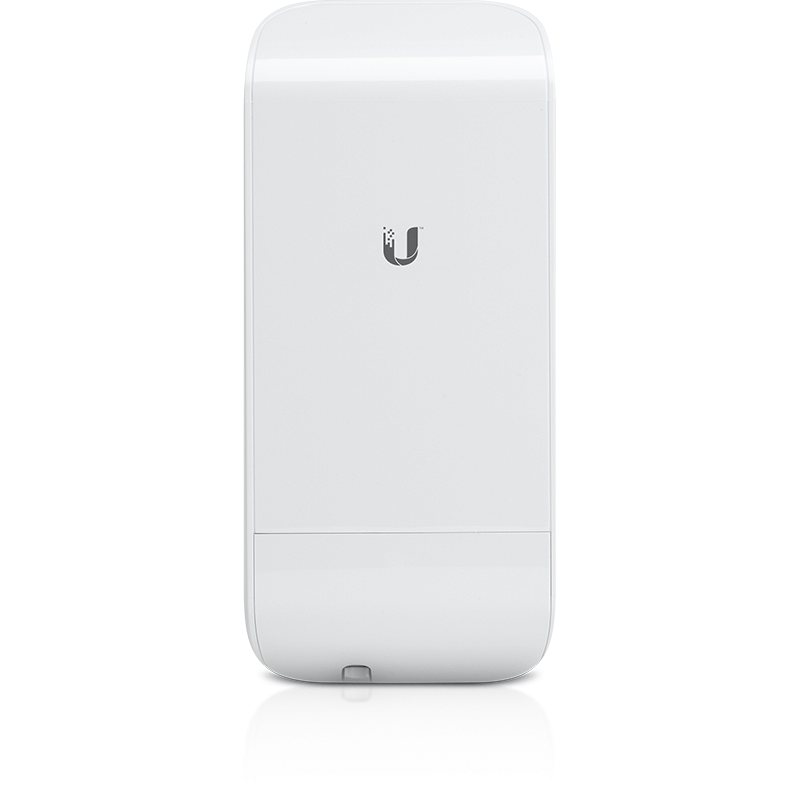

Ubiquiti locoM5 5GHz 13dBi Indoor/Outdoor airMAX CPE

$129.00 $119.00 While stocks last!
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our warehouse in 2-3 business days
Store Availability
  • 2-3 business days at Bankstown
  • Low Stock at Blacktown
  • 2-3 business days at Castle Hill
Shipping Estimate
10+ km Range, 150+ Mbps Throughput, 5.0 GHz Frequency, 13 dBi Gain, Atheros MIPS 24KC, 400 MHz CPU, 32 MB SDRAM, 8 MB Flash, 1x 10/100 Ethernet Port

Ubiquiti NanoStation Loco M5 5GHz 13dBi Indoor/Outdoor airMAX CPE - 10+ km Range, 150+ Mbps Throughput, 5.0 GHz Frequency, 13 dBi Gain, Atheros MIPS 24KC, 400 MHz CPU, 32 MB SDRAM, 8 MB Flash, 1x 10/100 Ethernet Port

Data transmission
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 150 Mbit/s
Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. 10/100/150 Mbit/s
Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal. MIMO
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. 13 dBi
Wireless LAN features
Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. 5.170 - 5.875 GHz
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE802.3,IEEE802.3u
Cabling technology Type of cable technology performance. 10/100Base-T(X)
Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
Management features
Data link protocols TCP/IP, MIMO TDMA
Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 5.5 W
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power requirements 24V, 0.5A
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -30 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Certificates
Certification FCC, IC, CE, RoHS
Weight & dimensions
Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). 80 x 31 x 163 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 180 g
More Information
SKU 227689
MPN LOCOM5
Brand Ubiquiti
Product Condition Brand New/Unused
Stock Availability Available for Shipping, In Stock at Blacktown
Product Use Business
Warranty Period 1 Year Warranty
Warranty Contact https://www.ui.com/
