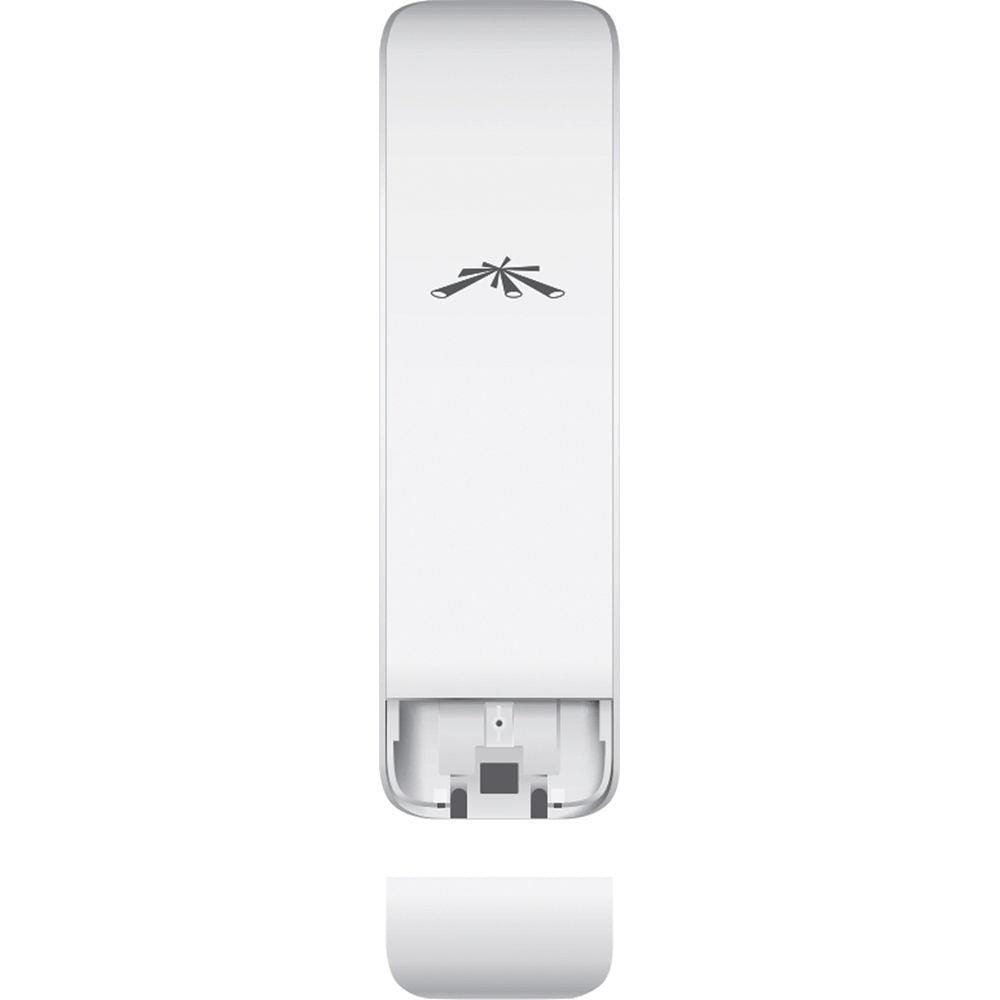

Ubiquiti 2.4GHz 11dBi Indoor/Outdoor airMAX CPE

Name: Ubiquiti 2.4GHz 11dBi Indoor/Outdoor airMAX CPE
Brand: Ubiquiti
SKU: 211148
Price: 165 AUD
Availability: OutOfStock

Item No:

211148

MPN:

NSM2

$169^.00 $165^.00 While stocks last!

This product is currently not available!

Shipping Information

Store Availability

Product Summary Summary Details Details Specifications Specs Reviews Reviews

13+ km Range, 150+ Mbps Throughput, 2.4 GHz Frequency, 11 dBi Gain, Atheros MIPS 24KC, 400 MHz CPU, 32 MB SDRAM, 8 MB Flash, 2x 10/100 Ethernet Ports

Features
2.4 GHz
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another.	150 Mbit/s
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.	2.4 GHz
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af
Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors.	15000 m
Transmitting power	28 dBmW

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Input voltage The voltage (V) which is required to power the product.	24 V
Input current	0.5 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	8 W

Design
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators
Certification	RoHS, FCC Part 15.247, IC RS210, CE
Internal The product is built in.

Antenna
Antenna features	Integrated antenna
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	11.2 dBi

Performance
Built-in processor Whether or not a processor is built into the device.
Processor model The model number for the processor in a computer.	Qualcomm Atheros
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	400 MHz
Processor architecture	MIPS 24Kc
Flash memory	8 MB
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	32 MB

Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 80 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	80 mm
Depth The distance from the front to the back of something.	30 mm
Height The measurement of the product from head to foot or from base to top.	294 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	400 g
