Ubiquiti 2.3-2.7GHz AirMax Base Station Sectorized Antenna 15dBi 120 deg For Use With RocketM2 - All mounting accessories and brackets included

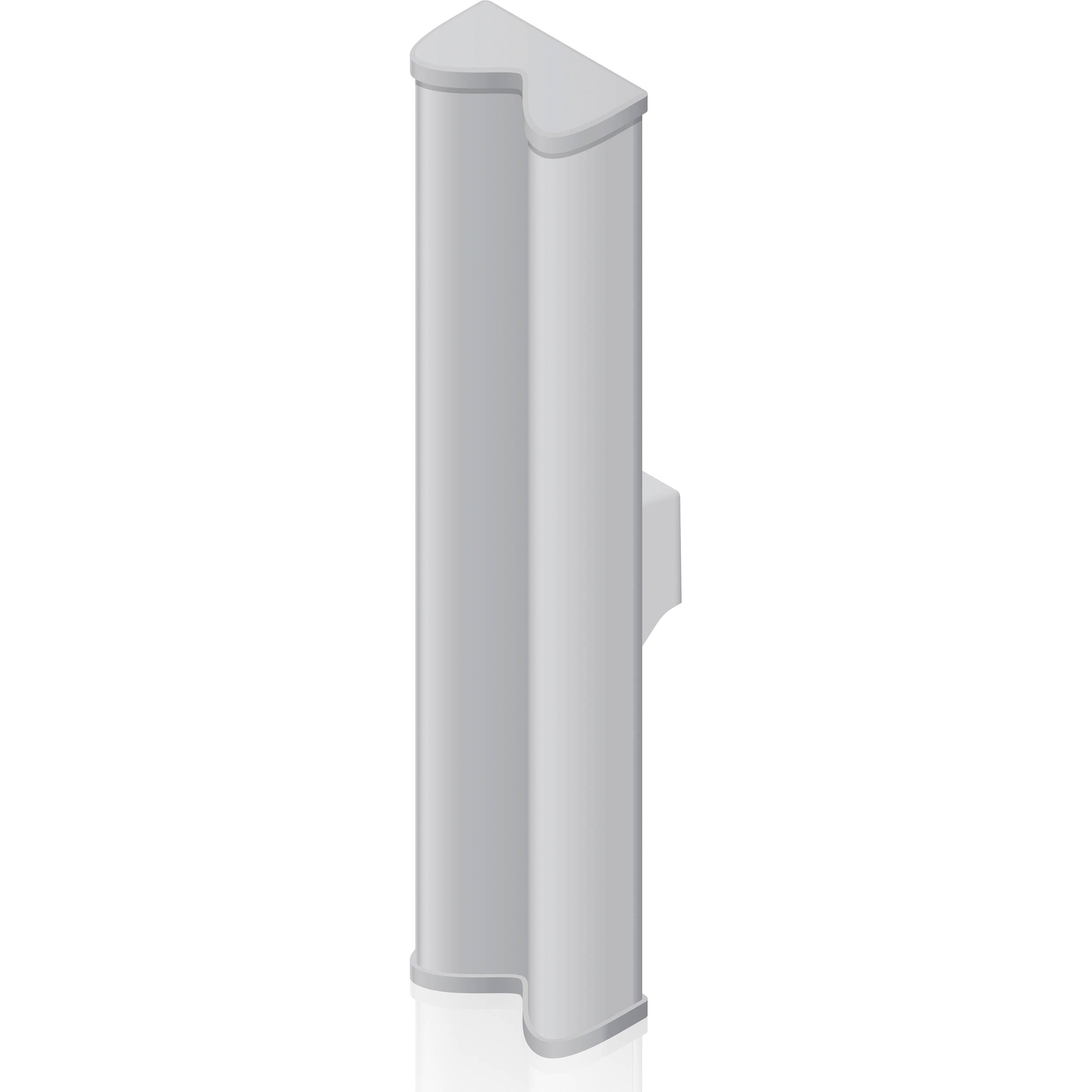

Ubiquiti 2.4 GHz 15 dBi AirMax Sector 2x2 BaseStation Sector Antenna (AM-2G15-120)
- Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 GHz |
| Horizontal beam width | 123° |
| Vertical beam width | 118° |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 15 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Sector antenna |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 93 mm |
| Depth The distance from the front to the back of something. | 145 mm |
| Height The measurement of the product from head to foot or from base to top. | 700 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4 kg |
| Packaging content | |
| Quantity The number of products there are. | 1 |
| SKU | 237447 |
| MPN | AM-2G15-120 |
| Brand | Ubiquiti |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ui.com/ |
