Tycon Power 18-36V In 56V 35W GigE 802.3af/at PoE, Low Cost & High Efficiency Solution for those requiring IEEE802.3af and IEEE802.3at Power
Tycon Power 9-36VDC Input, 24V Passive PoE Output, 20W
Description:

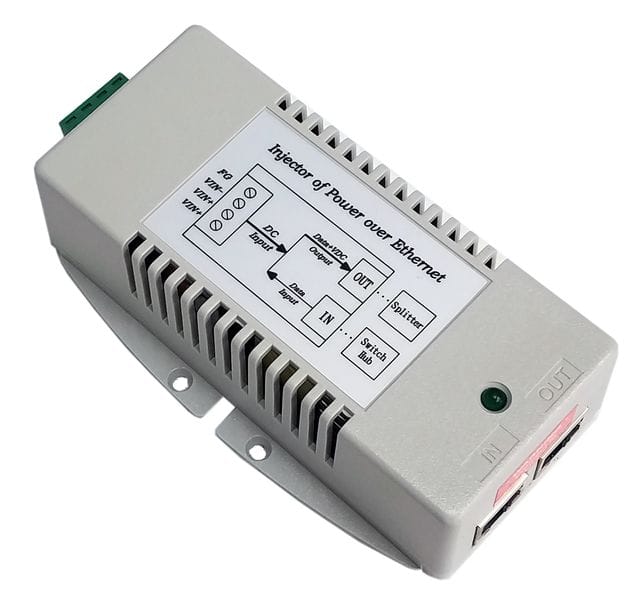

The TP-DCDC-2448GD-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power over Ethernet from a 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have one common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.
SKU: TP-DCDC-2448GD-HP
Features
Input Voltage 18VDC 36VDC
IEEE 802.3af/at Compliant
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 50W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
24V Battery Systems, Vehicle Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
Description:
The TP-DCDC-2448GD-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power over Ethernet from a 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have one common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.
SKU: TP-DCDC-2448GD-HP
Features
Input Voltage 18VDC 36VDC
IEEE 802.3af/at Compliant
Dual Inputs for Connecting 2 Power Sources
Integrated 10/100/1000MB PoE Inserter
High Power up to 50W
Low Self Consumption Power
Short Circuit, Over Current and Reverse/Over Voltage Protect
High Temperature Operation
Compact Size Maximize Available Space
I.T.E. Power Supply, UL Listed
Applications
24V Battery Systems, Vehicle Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems
| SKU | 816406 |
| MPN | TP-DCDC-2448GD-HP |
| Brand | Tycon Power |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tyconsystems.com/ |
