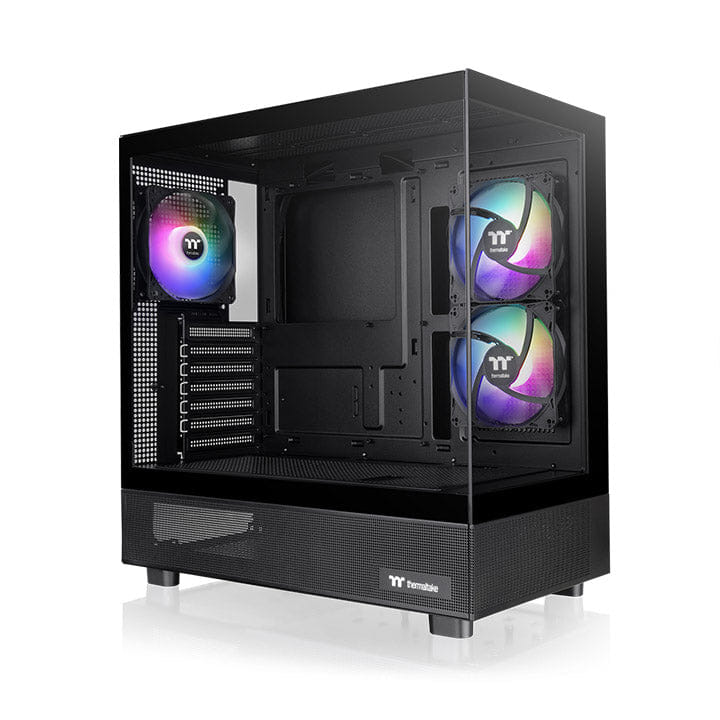

Thermaltake View 270 Plus TG ARGB Mid Tower Chassis, Midi Tower, PC, Black, ATX, EATX, micro ATX, Mini-ITX, SPCC, Tempered glass, Gaming
Designed to provide gorgeous panoramic viewing angles, the View 270 TG Plus ARGB comes in a mid-tower package, supporting a full ATX motherboard and enough space to accommodate up to 9 fans for cooling. (Three 120mm ARGB Lite Fans pre-installed.)
Tempered Glass Front and Side
The View 270 TG ARGB Plus comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.
Up to a 360mm Radiator
Supporting up to 360mm radiators on the top of the chassis, the View 270 TG ARGB Plus can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.
Three 120mm ARGB Lite Fans Pre-installed
The View 270 TG comes with three 120mm ARGB Lite Fans, with two being mounted on the side to provide intake and another mounted in the rear of the chassis to provide exhaust. Daisy chain connections for 5V ARGB and PWM fan control make wiring simple and lighting can be controlled through motherboard software from Asus, Gigabyte, MSI, and ASRock.
Space for Your Storage
The View 270 TG Plus can support up to two 2.5" SSDs or two 3.5" HDDs, in one dedicated location for each and one shared location for each as well.
Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.
Tempered Glass Front and Side
The View 270 TG ARGB Plus comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.
Up to a 360mm Radiator
Supporting up to 360mm radiators on the top of the chassis, the View 270 TG ARGB Plus can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.
Three 120mm ARGB Lite Fans Pre-installed
The View 270 TG comes with three 120mm ARGB Lite Fans, with two being mounted on the side to provide intake and another mounted in the rear of the chassis to provide exhaust. Daisy chain connections for 5V ARGB and PWM fan control make wiring simple and lighting can be controlled through motherboard software from Asus, Gigabyte, MSI, and ASRock.
Space for Your Storage
The View 270 TG Plus can support up to two 2.5" SSDs or two 3.5" HDDs, in one dedicated location for each and one shared location for each as well.
Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | SPCC, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Reset button |
|
| On/off button |
|
| LED indicators |
|
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 22 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Bottom |
| Supported power supply form factors | ATX, PS2 |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability |
|
| Front radiator installed |
|
| Rear radiator installed |
|
| Rear radiator sizes supported | 120 mm |
| Top radiator installed |
|
| Top radiator sizes supported | 120,240,360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 454 mm |
| Height The measurement of the product from head to foot or from base to top. | 459 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.35 kg |
| SKU | 809816 |
| MPN | CA-1Y7-00M1WN-01 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
