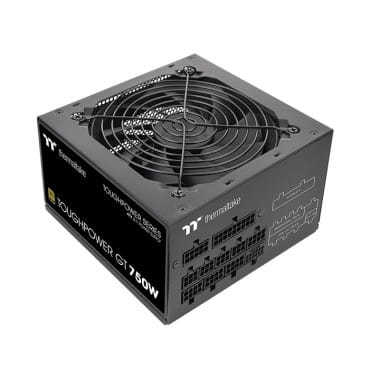

Thermaltake PS-TPT-0750FNFAGA-3, 750 W, 100 - 240 V, 50/60 Hz, 10 A, 100 W, 750 W
Thermaltake PS-TPT-0750FNFAGA-3. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Number of fans: 1 fan(s). Width: 275 mm, Depth: 221 mm, Height: 121 mm
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 60% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 150,450 mm |
| EPS power connector (4+4 pin) |
 |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 275 mm |
| Depth The distance from the front to the back of something. | 221 mm |
| Height The measurement of the product from head to foot or from base to top. | 121 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.4 kg |
| SKU | 807235 |
| MPN | PS-TPT-0750FNFAGA-3 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
