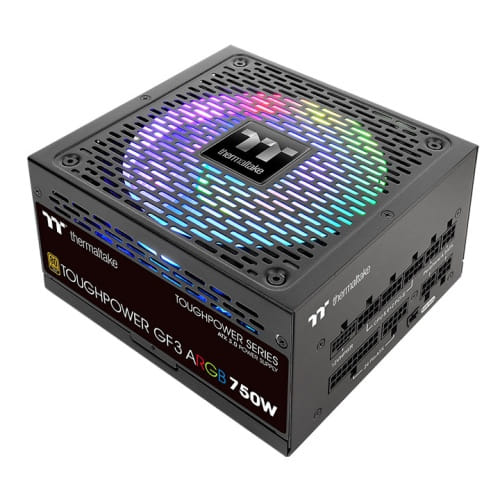

Thermaltake Toughpower GF3 ARGB 750W 80+ Gold PCIe Power Supply

Item No:
714401
MPN:
PS-TPD-0750F4FAGA-1
$239.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Thermaltake Toughpower GF3 ARGB, 750 W, 100 240 V, 50/60 Hz, 15 A, Active, 100 W
Toughpower GF3 ARGB series is fully compatible with Intel s ATX 3.0 specification. Designed with a native PCIe Gen 5.0 connector, it can power up next gen technology with one new 12VHPWR cable. The build in 16.8M colors RGB fan and addressable RGB lighting synchronization with mainstream motherboards.

Power Up Next Generation Hardware
Toughpower GF3 ARGB Gold Series (750W/850W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector, the new ATX 3.0 PSU is ready to take full advantage of next gen GPUs and CPUs. The 16.8 million color 140mm addressable RGB fan with 18 LEDs preinstalled helps deliver brighter and richer lighting, and supports synchronization with mainstream motherboards.

Fully Compatible with Intel ATX 3.0 Standards
Toughpower GF3 ARGB series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.0 Ready
Toughpower GF3 ARGB Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next generation GPUs natively. The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF3 ARGB 750W can deliver up to 300W for PCIe 5.0 graphics cards.

Note:
1. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.
2. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The GF3 ARGB series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.

Glow with the Flow
The built in RGB Fan features with addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors. The lighting modes and color options can be switched through physical control buttons.

Be Smart, Stay Quiet
Featuring a 140mm fluid dynamic bearing fan to creates the perfect balance between silence and superior cooling. Furthermore, with the Smart Zero Fan, the fan will not spin until it reaches a certain temperature, minimizing the fan noise.

More Stable than Ever
100% high quality Japanese 105 DegC/221 DegF capacitors provides great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single 12V Rail & High Class Technologies
Powerful single 12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Fully Modular Low Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF3 ARGB series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel processors to achieve maximum energy saving.

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Power
Total power The total power that is needed by the device, or the total power produced by the device. 750 W
AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V
AC input frequency 50/60 Hz
Input current 15 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100 W
Combined power (+12V) 750 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Hold time 17 ms
Ports & interfaces
Motherboard power connector The way in which the motherboard is connected to the power supply. 24-pin ATX
Motherboard power cable length 60 cm
Number of SATA power connectors 12
SATA power cable length 150,500 mm
Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. 4
Peripheral (Molex) power cable length 150,500 mm
PCI Express power connectors (6+2 pin) 4
Floppy disk drive connector
Floppy disk drive cable length 15 cm
Performance
80 PLUS certification 80 PLUS Gold
Supported motherboard form factors Design of the supported motherboards. ATX
Purpose What the product is used for. PC
Power supply unit (PSU) form factor ATX
ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. 3.0
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 100000 h
Certification CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
Design
Product colour The colour e.g. red, blue, green, black, white. Black
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. 14 cm
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). 1 fan(s)
Illumination The device has illumination.
On/off switch The button which is pressed to switch the device on or off.
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 20 - 90%
Storage relative humidity (H-H) 20 - 95%
Weight & dimensions
Width The measurement or extent of something from side to side. 160 mm
Depth The distance from the front to the back of something. 150 mm
Height The measurement of the product from head to foot or from base to top. 86 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 1.56 kg
More Information
SKU 714401
MPN PS-TPD-0750F4FAGA-1
Brand Thermaltake
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Product Features RGB
Warranty Period 1 Year Warranty
Warranty Contact https://www.thermaltake.com.au/
