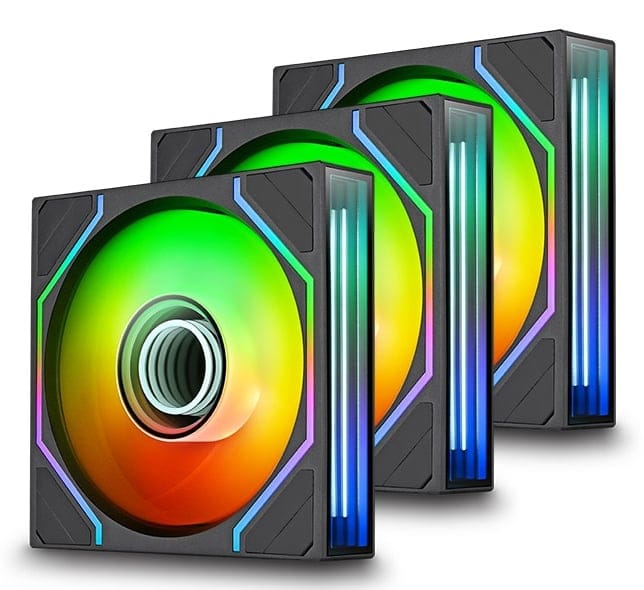

Thermaltake SWAFAN 140 EX INFINITY, Fan, 14 cm, 500 RPM, 1800 RPM, Black
SWAFAN 120 EX INFINITY is designed with Dual Infinity Mirror Lighting, reflecting two rings for breathtaking visual effects. Inheriting from the SWAFAN EX series, it features a Swappable Fan Blade Design and MAGForce 2.0 Quick Connection Design, fully presenting lighting in different airflow directions while minimizing cable clutter. Taking the fan
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (low speed) | 28.7 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 33.4 dB |
| Minimum airflow (imperial) | 81.65 cfm |
| Maximum airflow | 85.91 cfm |
| Minimum air pressure | 2.5 mmH2O |
| Maximum air pressure | 2.53 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Hydraulic |
| Quantity per pack | 3 pc(s) |
| Fan's mean time to failure (MTTF) | 40000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fan blades | 9 |
| Illumination LED |
|
| Number of LEDs | 9 |
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V & 5 V |
| Rated voltage | 12 V |
| Starting voltage | 6 V |
| Fan power consumption | 4.56 W |
| Rated current | 0.38 A |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.8 A |
| LED voltage | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 144 mm |
| Depth The distance from the front to the back of something. | 28 mm |
| Height The measurement of the product from head to foot or from base to top. | 140 mm |
| Fan dimensions (W x D x H) | 144 x 140 x 28 mm |
| Fan thickness | 2.8 cm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Cables included | 3-pin, 4-pin |
| Screws included |
|
| Other features | |
| Fan rated voltage | 12v x 5v |
| Product life The average life of the product. | 40000 h |
| SKU | 841090 |
| MPN | CL-F246-PL14SW-A |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
