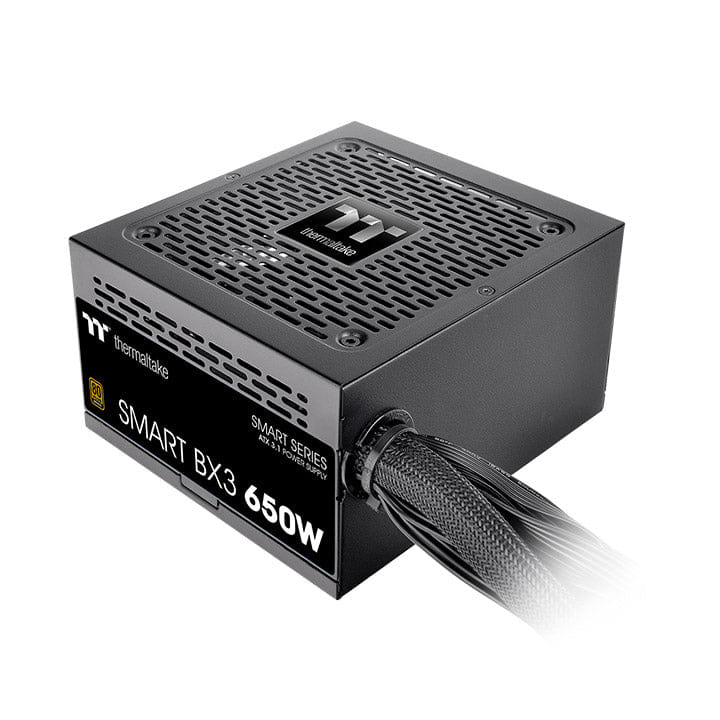

Thermaltake Smart BX3, 650 W, 100 - 240 V, 50/60 Hz, Active, 110 W, 650 W
Unmatched Reliability ATX 3.1 Power Supply
The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
Be Smart, Stay Quiet
Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.
High Quality 105DegC/221DegF Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Non-Modular Flat Cable Design
Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Bronze-Certified and Intel C6/C7 States Ready
Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
Be Smart, Stay Quiet
Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.
High Quality 105DegC/221DegF Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Non-Modular Flat Cable Design
Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Bronze-Certified and Intel C6/C7 States Ready
Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,500 mm |
| Number of SATA power cables | 1 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 150,500 mm |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 784769 |
| MPN | PS-SPD-0650NNFABA-3 |
| Brand | Thermaltake |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.thermaltake.com.au/ |
