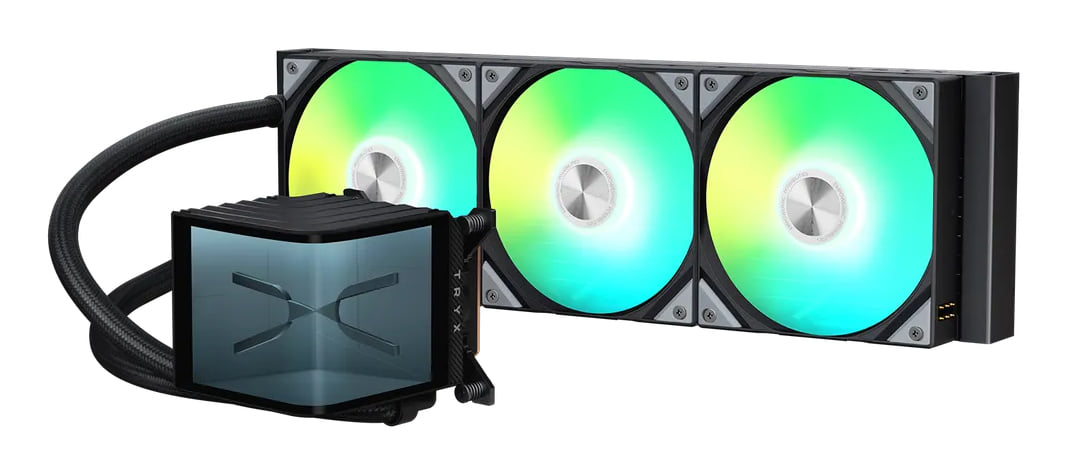

TRYX Panorama ARGB L-Shaped 360mm CPU Cooler - Black
Item No:
845024
MPN:
L-P360A-AS3M-G1K
$569.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 3-5 business days
Store Availability
- 4-6 business days at Bankstown Store
- 4-6 business days at Castle Hill Store
- 3-5 business days at Northmead Store
Shipping Estimate
TRYX PANORAMA ARGB 360, Liquid cooling kit, 12 cm, Black
The World's First AIO With An 6.67'' AMOLED L-shaped Screen
Advanced AMOLED Screen
6.67-Inch Curved Display
6.5-inch visible area
Ultra-Wide Viewing Angle
400 cd/m2 Brightness
60Hz Refresh Rate
372 PPI Ultra-High Clarity
1,000,000:1 Ultra-High Contrast
Triple Layer Screen Technology
Anti-Glare Coating
TRYX uses a chemical etching process on high-quality glass, reducing reflection significantly.
Tempered Glass Cover
Full-Adhesion Technology
Near 0 Resource Usage
Powered by an Independent Embedded System
The display operates independently, delivering exceptional performance without taxing your PC's resources.
G2 Curvature
The screen features a meticulously designed G2 curvature, offering smoother, seamless transitions for an exceptional 3D visual experience.
VRM Fan
The fan beneath the screen provides additional cooling for the motherboard's VRM, enhancing power delivery stability for the platform.
ROTA SL ARGB
Redesigned
Cleaner form, simpler build process.
Redesigned
One cable,Full control
Fans connect via integrated contacts for both power and signal. A single magnetic-adhesive cable manages lighting and speed across all fans. That's it.
Gen2 ARGB
Each fan is equipped with 8 ARGB GEN2 LEDs.
Fluid Dynamic Bearing
FDB offers better durability and quieter operation.
ASETEK 8th Generation V2 Water Pump Solution
30mm cold plate with high-density fins
Thicker plate, denser fin structure. Thermal performance is up roughly 2DegC per 100W compared to the previous generation.
40% wider tubing
More flow, faster heat transfer.
Adjustable Mounting Bracket?
Through a unique structural design, small adjustments to the water block position can be made without replacing the mounting components.?
Enahanced Performance
By adjusting the position of the copper base, it better covers the CPU heat source, enhancing cooling performance and unleashing the full potential of the CPU.?
KANALI Software Hub
Easily Create Your Personalized Setup
Display settings, fan speed control, and ARGB effects can all be centrally configured through the KANALI Software Center.
3D Content Library
KANALI comes preloaded with officially customized 3D format content.The content library will continue to grow, offering users more immersive 3D visual experiences. Constantly Updated
Custom Content Library
KANALI allows users to create a content library that supports a variety of formats, up to 500 MB each, including MP4, JPEG,GIF and more.
Split-Screen Display
PANORAMA allows the left and right screens to display different file formats, enhancing versatility and gameplay while elevating both functionality and user experience.
PC Build Gallery
Enjoy limitless creativity at your fingertips, a premium build experience.
Advanced AMOLED Screen
6.67-Inch Curved Display
6.5-inch visible area
Ultra-Wide Viewing Angle
400 cd/m2 Brightness
60Hz Refresh Rate
372 PPI Ultra-High Clarity
1,000,000:1 Ultra-High Contrast
Triple Layer Screen Technology
Anti-Glare Coating
TRYX uses a chemical etching process on high-quality glass, reducing reflection significantly.
Tempered Glass Cover
Full-Adhesion Technology
Near 0 Resource Usage
Powered by an Independent Embedded System
The display operates independently, delivering exceptional performance without taxing your PC's resources.
G2 Curvature
The screen features a meticulously designed G2 curvature, offering smoother, seamless transitions for an exceptional 3D visual experience.
VRM Fan
The fan beneath the screen provides additional cooling for the motherboard's VRM, enhancing power delivery stability for the platform.
ROTA SL ARGB
Redesigned
Cleaner form, simpler build process.
Redesigned
One cable,Full control
Fans connect via integrated contacts for both power and signal. A single magnetic-adhesive cable manages lighting and speed across all fans. That's it.
Gen2 ARGB
Each fan is equipped with 8 ARGB GEN2 LEDs.
Fluid Dynamic Bearing
FDB offers better durability and quieter operation.
ASETEK 8th Generation V2 Water Pump Solution
30mm cold plate with high-density fins
Thicker plate, denser fin structure. Thermal performance is up roughly 2DegC per 100W compared to the previous generation.
40% wider tubing
More flow, faster heat transfer.
Adjustable Mounting Bracket?
Through a unique structural design, small adjustments to the water block position can be made without replacing the mounting components.?
Enahanced Performance
By adjusting the position of the copper base, it better covers the CPU heat source, enhancing cooling performance and unleashing the full potential of the CPU.?
KANALI Software Hub
Easily Create Your Personalized Setup
Display settings, fan speed control, and ARGB effects can all be centrally configured through the KANALI Software Center.
3D Content Library
KANALI comes preloaded with officially customized 3D format content.The content library will continue to grow, offering users more immersive 3D visual experiences. Constantly Updated
Custom Content Library
KANALI allows users to create a content library that supports a variety of formats, up to 500 MB each, including MP4, JPEG,GIF and more.
Split-Screen Display
PANORAMA allows the left and right screens to display different file formats, enhancing versatility and gameplay while elevating both functionality and user experience.
PC Build Gallery
Enjoy limitless creativity at your fingertips, a premium build experience.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Liquid cooling kit |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1851, LGA 1200 (Socket H5), Socket AM4, Socket AM5 |
| Maximum airflow The highest volume of air the device can move per unit of time, typically measured in cubic feet per minute (CFM) or cubic metres per hour (m³/h). | 65.64 cfm |
| Bearing type The mechanical design used to reduce friction between moving parts, such as a ball bearing or fluid dynamic bearing. | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) The maximum amount of sound emitted by the device during operation, measured in decibels (dB). | 28.87 dB |
| Pump noise level The maximum sound pressure emitted by the pump during operation, measured in dB. | 25.3 dB |
| Quantity per pack The number of individual units contained within a single sales package, measured in pc(s). | 1 pc(s) |
| Pump motor speed (min) The minimum rotational speed of the pump motor, measured in RPM. | 800 RPM |
| Pump motor speed (max) The maximum rotational speed of the pump motor, measured in revolutions per minute (RPM). | 3600 RPM |
| Fan speed (min) The lowest rotational speed at which the fan can operate, measured in revolutions per minute (rpm). | 500 RPM |
| Fan speed (max) The maximum rotational speed of the fan, typically measured in revolutions per minute (RPM). | 1850 RPM |
| Fan static pressure The amount of air pressure the fan can generate to push air through restrictive environments, measured in mmH2O. | 2.49 mmH2O |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Base plate material The substance used to manufacture the foundation plate of the unit (e.g. Aluminium, Carbon fibre). | Copper |
| Display type Type of display (screen) e.g. LCD. | AMOLED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 16.9 cm (6.67") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 2240 x 1080 pixels |
| Power | |
| Thermal Design Power (TDP) The maximum amount of heat the product is expected to generate under a heavy workload, typically measured in Watts (W). | 320 W |
| Weight & dimensions | |
| Radiator width The horizontal measurement of the component across its shortest side, expressed in millimetres. | 40 cm |
| Radiator depth The measurement of the unit's thickness from the front surface to the back, expressed in millimetres. | 12 cm |
| Radiator height The vertical measurement of the component, typically expressed in millimetres. | 3 cm |
| Tube length The total length of the heat pipe or cooling tube, measured in millimetres. | 40 cm |
| Pump width The measurement of the pump block from side to side, expressed in millimetres. | 9.2 cm |
| Pump depth The total thickness of the pump block measured in millimetres. | 11.8 cm |
| Pump height The vertical measurement of the pump unit, expressed in millimetres. | 9.2 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Fan dimensions (W x D x H) The physical size of the component expressed as width, depth, and height, measured in mm. | 120 x 120 x 25 mm |
| Packaging content | |
| Mounting kit Indicates whether the necessary hardware for installation is included with the product. |
 |
| SKU | 845024 |
| MPN | L-P360A-AS3M-G1K |
| Brand | TRYX |
| Assembled to Order | No |
| Display In Stock In Frontend | Yes |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tryx.com/en |
| Stock Availability | Available for Shipping |
