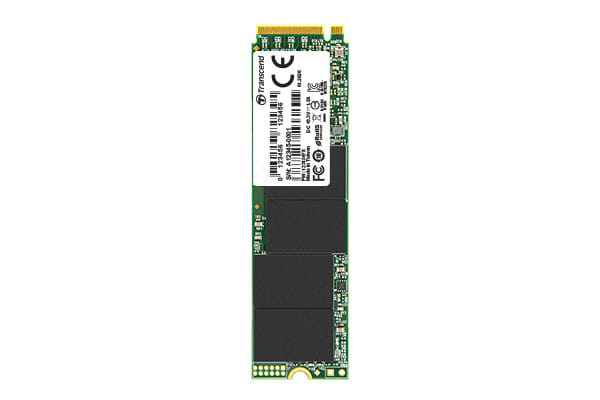

Transcend MTE662T-I, 512 GB, M.2, 3500 MB/s
Transcend's MTE662T M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with NVM Express (NVMe) 1.3 specifications to achieve never-before-seen transfer speeds. The MTE662T features state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTE662T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
Transcend also offers the MTE662T-I with wide temperature (-40? 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Transcend also offers the MTE662T-I with wide temperature (-40? 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
| Features | |
| NVMe version | 1.3 |
| SSD capacity The Solid State Drive's data storage capacity. | 512 GB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.1 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| Component for What this product is used as a part of (component for). | PC |
| Read speed The speed at which a device can read data. | 3500 MB/s |
| Write speed The speed at which a device can write data. | 2700 MB/s |
| Random read (4KB) | 340000 IOPS |
| Random write (4KB) | 355000 IOPS |
| PCI Express interface data lanes | x4 |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 3000000 h |
| Certification | CE, FCC, BSMI |
| Power | |
| Operating voltage Defines the range of operating voltages available | 3.3 V |
| Power consumption (sleep) | 1 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 3.58 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration Environmental requirements for vibration in operating mode | 20 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| Other features | |
| Compliance certificates | RoHS |
| SKU | 820673 |
| MPN | TS512GMTE662T-I |
| Brand | Transcend |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://au.transcend-info.com/ |
