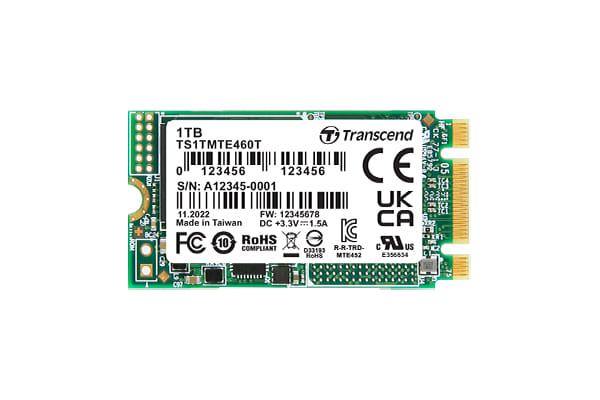

Transcend MTE460T-I, 256 GB, M.2
Transcend's MTE460T PCIe M.2 SSD features a PCIe Gen 3x2 interface and 112-layer 3D NAND flash, delivering breakthrough density that greatly improves storage efficiency. In addition, the 30" gold finger PCB, Corner Bond technology, and anti-sulfur resistors guarantee its reliability in harsh conditions. Transcend's MTE460T is also 100% chamber tested in-house for extended operating temperatures of -20?75?. Wide-temp capability (-40?85?) can also be provided upon request, optimizing stability in extreme environments.
| Features | |
| NVMe version | 1.3 |
| SSD capacity The Solid State Drive's data storage capacity. | 256 GB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.1 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| Component for What this product is used as a part of (component for). | PC/Laptop |
| Hardware encryption |
|
| M.2 SSD size | 2242 (22 x 42 mm) |
| Random read (4KB) | 92000 IOPS |
| Random write (4KB) | 225000 IOPS |
| Sequential read speed (CDM) | 1700 MB/s |
| Sequential write speed (CDM) | 1500 MB/s |
| M.2 key ID | B+M |
| PCI Express interface data lanes | x2 |
| PCI Express CEM revision | 3.1 |
| S.M.A.R.T. support |
|
| TRIM support |
|
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Native Command Queuing (NCQ) |
|
| Data retention | 3 year(s) |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 3000000 h |
| Drive writes per day (DWPD) | 0.86 |
| TBW rating | 900 |
| Power | |
| Operating voltage Defines the range of operating voltages available | 3.3 V |
| Power consumption (average) | 2.9 W |
| Power consumption (idle) | 0.33 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 42 mm |
| Height The measurement of the product from head to foot or from base to top. | 3.58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 75 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration Environmental requirements for vibration in operating mode | 20 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 15 G |
| Other features | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), UKCA |
| SKU | 820653 |
| MPN | TS256GMTE460T-I |
| Brand | Transcend |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://au.transcend-info.com/ |
