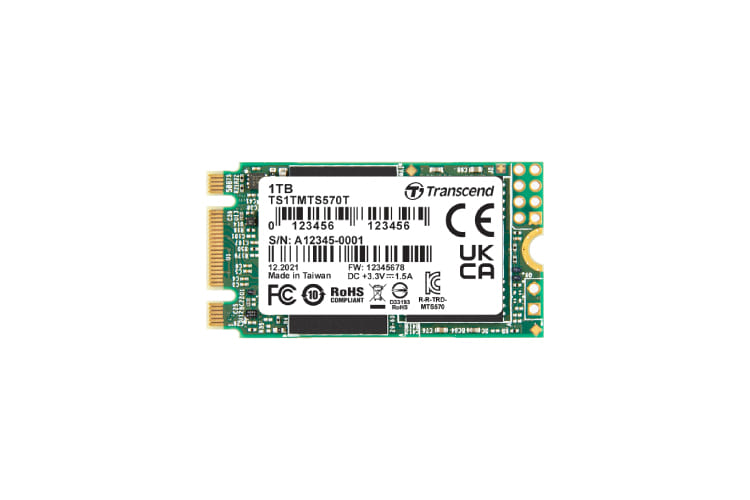

Transcend TS1TMTS570T-I, 1 TB, M.2, 560 MB/s
Transcend's M.2 SSD MTS570T features the SATA III 6Gb/s interface and the state-of-the-art 3D NAND technology, which allows 112 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 96 layers, this density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. Applied with 30" gold finger PCB and Corner Bond technology, the MTS570T is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20?75?.
Transcend also offers the MTS570T-I with wide temperature (-40? 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Transcend also offers the MTS570T-I with wide temperature (-40? 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
| Features | |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| Component for What this product is used as a part of (component for). | PC/Laptop |
| Hardware encryption |
 |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Read speed The speed at which a device can read data. | 560 MB/s |
| Write speed The speed at which a device can write data. | 520 MB/s |
| Random read (4KB) | 90000 IOPS |
| Random write (4KB) | 85000 IOPS |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 3000000 h |
| Power | |
| Operating voltage Defines the range of operating voltages available | 3.3 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 42 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 3.58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 15 G |
| Vibration resistance | 20 G |
| SKU | 820649 |
| MPN | TS1TMTS570T-I |
| Brand | Transcend |
| Product Condition | Brand New/Unused |
| Product Use | General |
