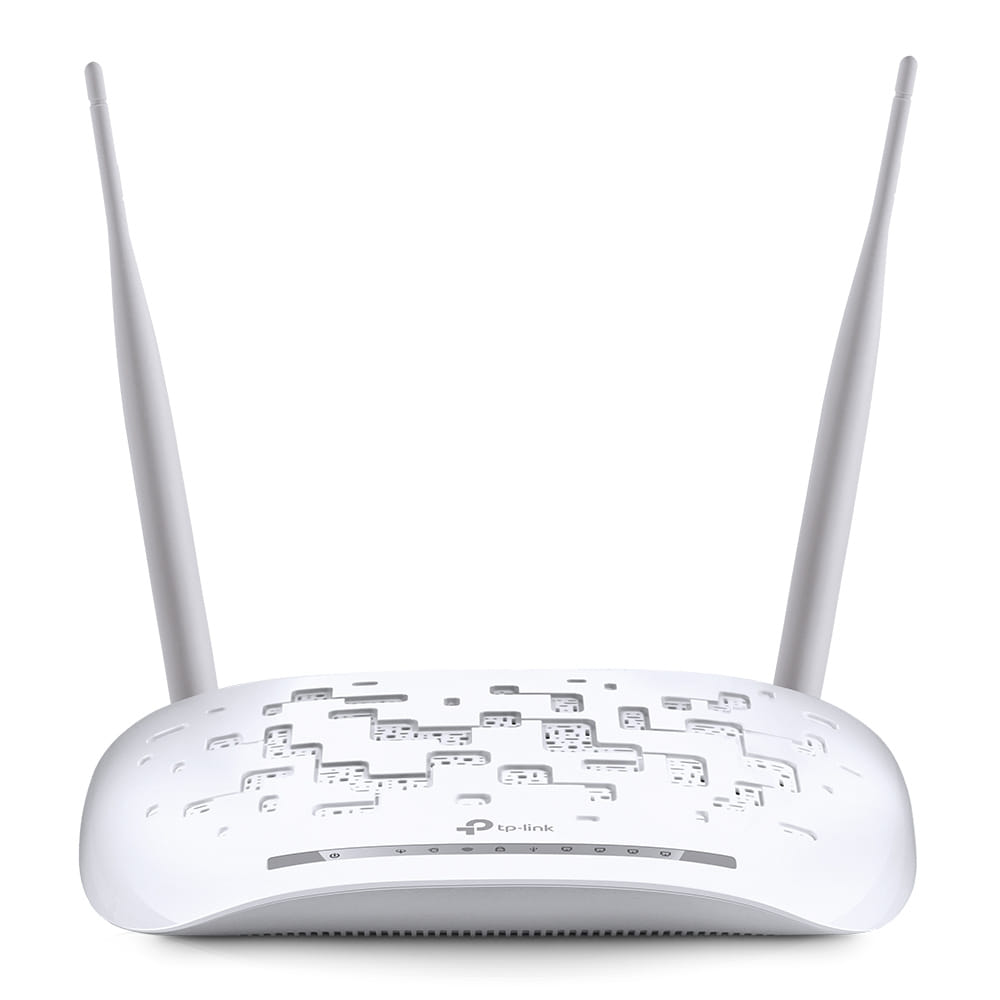

TP-Link TD-W9970 300Mbps NBN Ready Wireless N USB ASDL/VDSL2 Modem Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Single-band (2.4 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b,802.11g,Wi-Fi 4 (802.11n)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Port forwarding
Dynamic DNS (DDNS)
VPN tunnels quantity	10
VPN Passthrough
VPN support	PPTP, L2TP, IPSec Pass-through

DSL features
VDSL2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
RJ-11 ports quantity	1

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	128-bit AES,128-bit WEP,192-bit AES,256-bit AES,3DES,64-bit WEP,DES,MD5,SHA-1,WPA,WPA-PSK,WPA2,WPA2-PSK
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.	NAT, SPI
Stateful Packet Inspection (SPI)
Filtering
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
IP address filtering
URL filtering
DMZ support
Network address translation (NAT)

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Universal Plug and Play (UPnP)

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Wall mountable The product can be mounted on (attached to ) a wall.
LED indicators
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	5 dBi
Antennas quantity	2

Features
Firmware upgradeable
Certification	CE, FCC, RoHS

Power
Power source type What the power source is.	DC
Output voltage	12 V
Output current	1 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows XP
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	macOS

Weight & dimensions
Width The measurement or extent of something from side to side.	195 mm
Depth The distance from the front to the back of something.	130 mm
Height The measurement of the product from head to foot or from base to top.	36 mm

Packaging data
Cables included	LAN (RJ-45),Phone (RJ-11)
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Other features
WLAN data transfer rates supported	300 Mbit/s
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0
xDSL connection
