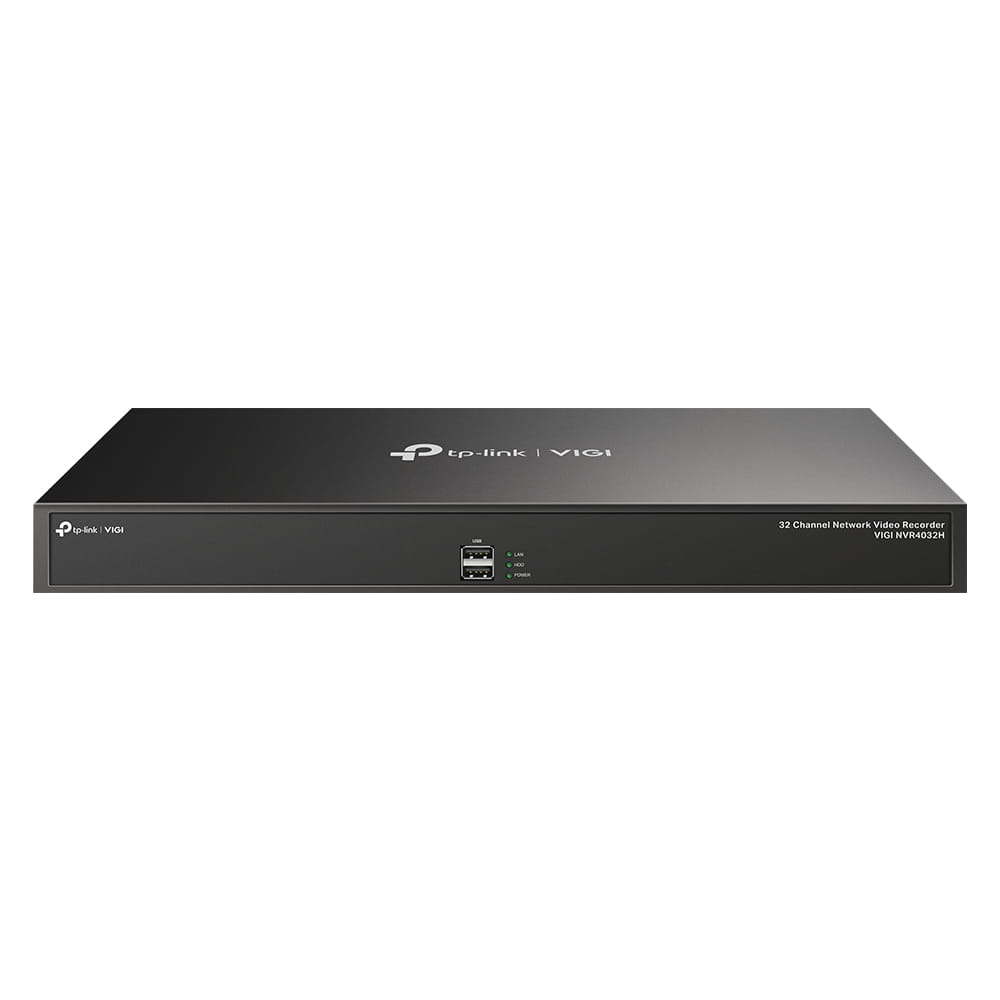

TP Link VIGI NVR4032H, 32 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768, H.264, H.264 , H.265, H.265
Security Never Shuts Down
32 Channel Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 32MP Decoding Capacity
Sharp image definition up to 8MP ensures you capture every detail. 16 ch@2MP/ 8 ch@4MP decoding capacity allows you to enjoy more channels live view and playback at the same time
Independent Video Output
Greatly reduces the time spent on switching between screens.
Connect the HDMI and VGA ports to the two different screens and freely choose what live views each screen shows. That way, you will enjoy multi channels live views simultaneously.
The VGA and HDMI ports display live views and configuration & playback interface, respectively. It will allow users to play back the videos or configure the devices while watching live views at the same time.
Rich Ports for Diversified Functions.
Equipped with a variety of ports, VIGI NVR4032H integrates 16 - alarm in, 4 - alarm out, two way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.
Dual Ethernet Ports Design
Supports a variety of network modes to meet your different needs.
Higher bandwidth for high definition cameras.
320 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras.
Smart Video Coding by H.265
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Security for every hour and every day.
4 SATA (1 up to 10TB)
Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.
Space saving and easy installation.
Rack Mounting
Just simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier free compatibility
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP Link is dedicated to protecting the business you ve worked hard to build whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
32 Channel Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 32MP Decoding Capacity
Sharp image definition up to 8MP ensures you capture every detail. 16 ch@2MP/ 8 ch@4MP decoding capacity allows you to enjoy more channels live view and playback at the same time
Independent Video Output
Greatly reduces the time spent on switching between screens.
Connect the HDMI and VGA ports to the two different screens and freely choose what live views each screen shows. That way, you will enjoy multi channels live views simultaneously.
The VGA and HDMI ports display live views and configuration & playback interface, respectively. It will allow users to play back the videos or configure the devices while watching live views at the same time.
Rich Ports for Diversified Functions.
Equipped with a variety of ports, VIGI NVR4032H integrates 16 - alarm in, 4 - alarm out, two way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.
Dual Ethernet Ports Design
Supports a variety of network modes to meet your different needs.
Higher bandwidth for high definition cameras.
320 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras.
Smart Video Coding by H.265
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Security for every hour and every day.
4 SATA (1 up to 10TB)
Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.
Space saving and easy installation.
Rack Mounting
Just simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier free compatibility
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP Link is dedicated to protecting the business you ve worked hard to build whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Video motion detection |
 |
| Video loss detection |
|
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Backup function The function if the main power source fails. |
|
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 320 Mbit/s |
| Recording modes The different ways in which this device can record. | Manual, Schedule |
| Audio system System used to play music or speech. | 2-way |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 0 GB |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Line-in |
|
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | UPnP, NTP, ONVIF, CGI |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Buzzer off |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 48 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| System requirements | |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Browser supported List of supported browsers for this product. | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4 kg |
| Package width The distance from one side of the packaging to the other. | 440 mm |
| Package depth The distance from the front to the back of the packaging. | 528 mm |
| Package height The distance from the top to the bottom of the packaging. | 100 mm |
| Package weight Weight of the packaged product. | 5.22 kg |
| Packaging content | |
| Cables included | AC, Power |
| Quick installation guide |
|
| SKU | 732911 |
| MPN | VIGI NVR4032H |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
