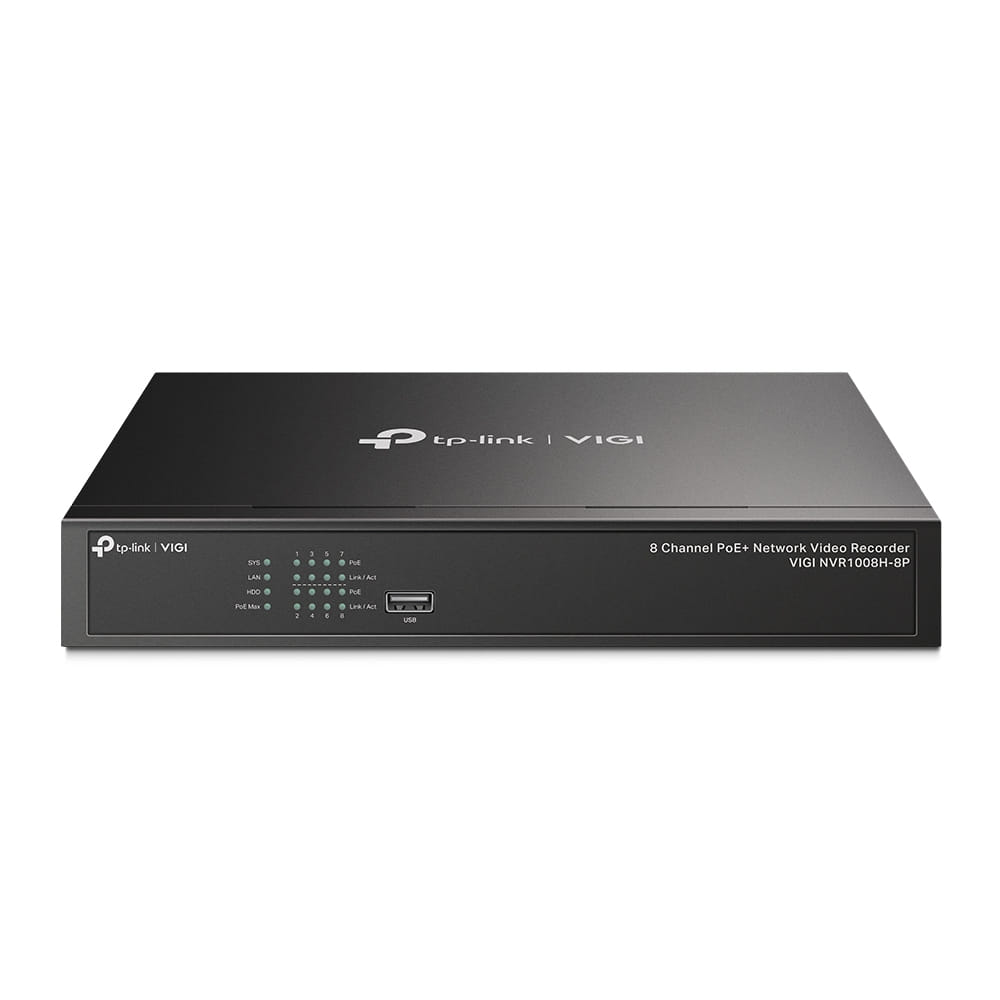

TP Link VIGI NVR1008H 8P VIGI 8 Channel PoE Network Video Recorder
4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle .
Simplified Deployment with PoE : Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.
8 Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265 : Without using any extra bandwidth, your camera transmits compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensures Compatibility
Simplified Deployment with PoE : Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.
8 Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265 : Without using any extra bandwidth, your camera transmits compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensures Compatibility
| Performance | |
| Video input channels The number of channels for video input that the device features. | 8 channels |
| Number of simultaneously playbacked channels | 8 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Audio system System used to play music or speech. | 2-way |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 0 GB |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 1 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, DHCP, DNS, NTP, UPnP |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| LED indicators | HDD, LAN, PoE, System |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 12.94 W |
| Output current | 1.31 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 53 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 294 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| AC adapter included |
|
| Quick installation guide |
|
| SKU | 728345 |
| MPN | VIGI NVR1008H-8P |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
