TP Link VIGI 4 Channel PoE Network Video Recorder, 4 channels, 3840 x 2160 pixels, 720p, 1080p, 2160p, 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720, 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps, H.264, H.264 , H.265, H.265
Security Never Shuts Down

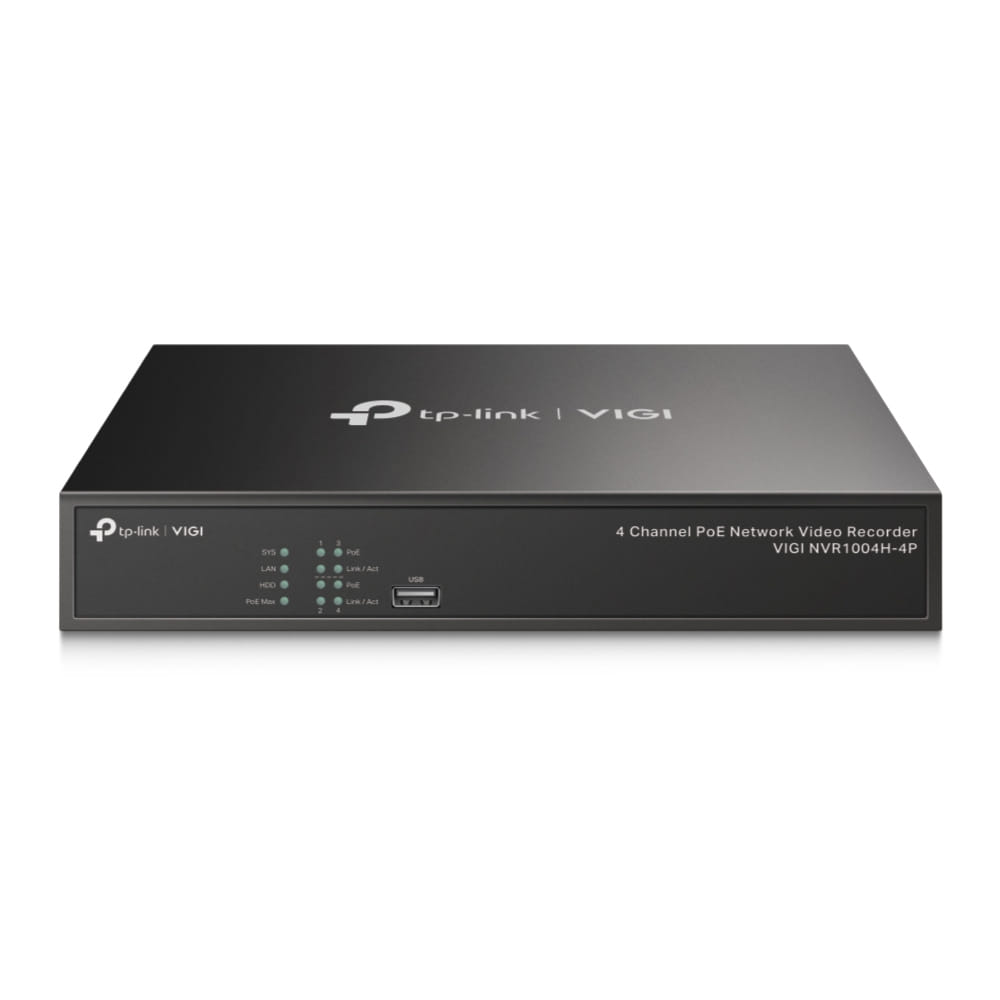

VIGI NVR1004H 4P 4 Channel PoE Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and a 4 channel display ensures you capture every detail, from every angle.
Dedicated 4 PoE ports (53 W budget) for simplified IP camera deployment .
Features 4 - 10/100Mbps PoE ports, the NVR supports up to 30 W on each PoE port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing footage is faster than ever.
4 Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier free compatibility.
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.
Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Greet your visitors before they enter.
Two Way Audio
With voice intercom support, carry two way conversations while watching your feed from anywhere. Suitable for management.
Higher bandwidth for high definition cameras.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP Link is dedicated to protecting the business you ve worked hard to build " whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
VIGI NVR1004H 4P 4 Channel PoE Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and a 4 channel display ensures you capture every detail, from every angle.
Dedicated 4 PoE ports (53 W budget) for simplified IP camera deployment .
Features 4 - 10/100Mbps PoE ports, the NVR supports up to 30 W on each PoE port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing footage is faster than ever.
4 Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier free compatibility.
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.
Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Greet your visitors before they enter.
Two Way Audio
With voice intercom support, carry two way conversations while watching your feed from anywhere. Suitable for management.
Higher bandwidth for high definition cameras.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP Link is dedicated to protecting the business you ve worked hard to build " whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 4 channels |
| Alarm input channels | 4 |
| Alarm output channels | 1 |
| Video recording modes | 720p, 1080p, 2160p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720 |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 0 GB |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| HDMI output The device features an HDMI output. |
 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, DHCP, DNS, NTP, UPnP |
| Features | |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4.25 W |
| Output current | 1.31 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 53 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 246.2 mm |
| Depth The distance from the front to the back of something. | 148.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| SKU | 719240 |
| MPN | VIGI NVR1004H-4P |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
