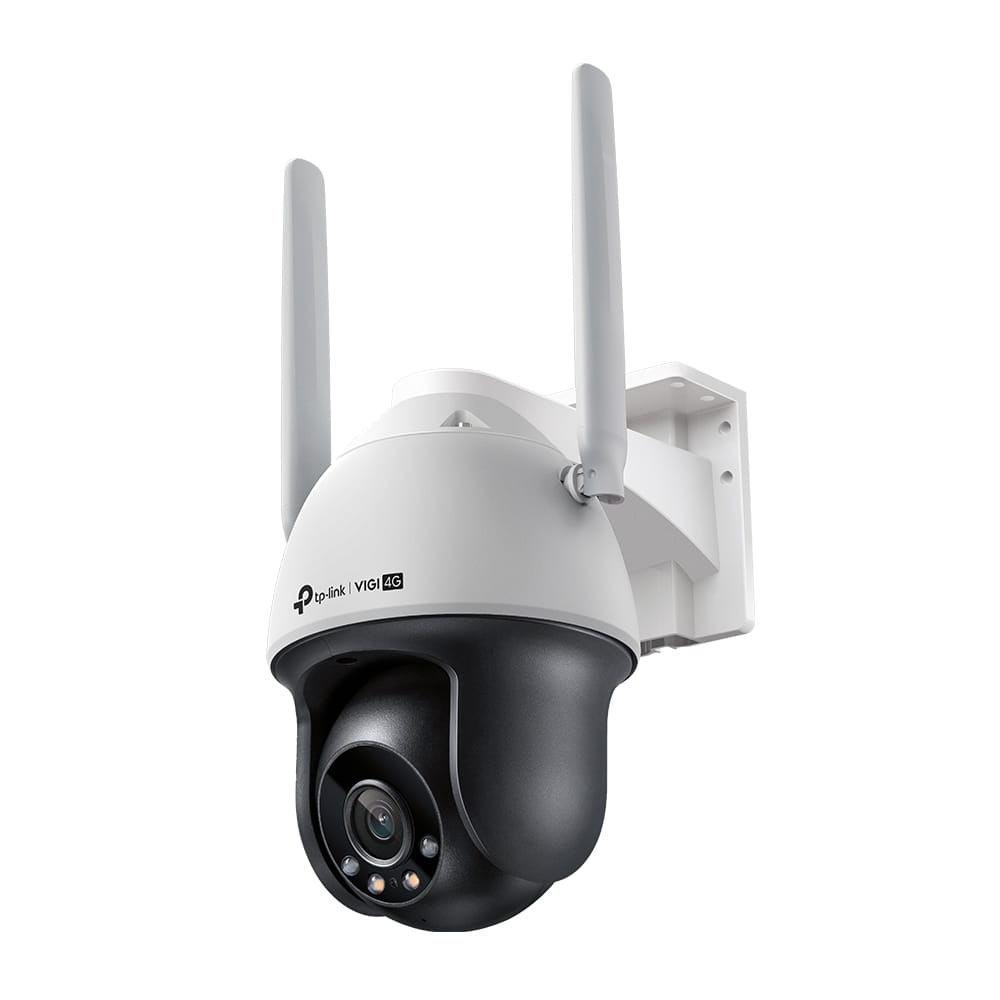

TP-Link VIGI C540-4G VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Auto patrol mode
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Luminous flux Luminous flux or luminous power is the measure of the perceived power of light measured in lumen. The luminous flux is a weighted sum of the power at all wavelengths in the visible band.	0.005 lm
Certification	RCM, BSMI, VCCI, NTRA, KC

Design
Form factor The shape or design of the product.	Turret
Mounting type Type of mounting e.g. wall mounting.	Ceiling/wall
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Housing material What the casing of the product is made of.	Plastic
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66

Camera
Camera pan control
Camera tilt control
Lens viewing angle, horizontal	80°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	94°
Tilt angle range	0 - 120°
Tilt speed	44 °/sec
Pan range	0 - 348°
Pan speed	44 °/sec
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/3 - 1/10000 s
Number of Privacy masking areas	4

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3.06 mm (1 / 3.06")
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Number of lenses The number of lenses installed in the device.	1
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Lens diameter The size of the lens, measured by drawing a straight line from one side to the other, going through the centre of the lens.	4 mm
Maximum aperture number	1.6
Identify distance	8 m
Minimum aperture number The minimum size of the hole through which light enters a camera.	1.6

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
LED type	IR/White
Number of illumination LEDs	4

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2560 x 1440 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Video streaming
Noise reduction
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking
Bit rate control	Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)
3D positioning

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	52 dB
Built-in microphone Microphone that is found inside the product.
Bit rate range	64 - 64 Kbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
SIM card slot Whether the device features a SIM card slot.
SIM card type	NanoSIM
4G standard	LTE-TDD & LTE-FDD
3G standards	WCDMA
Live view
Number of simultaneous live view channels	3 channels

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Security
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
IP address filtering
HTTPS encryption
Intelligent Video Surveillance (IVS) system features	Human detection
Mirror
Digest authentication

Management features
Reset button
Behavior analysis	Intrusion detection, Line crossing detection

Power
Power source type What the power source is.	DC
DC output voltage	12

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	120 mm
Depth The distance from the front to the back of something.	182 mm
Height The measurement of the product from head to foot or from base to top.	201 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	690 g

Features
Basic event	Motion Detection, Camera Tampering Detection, Exception

Packaging data
Package width The distance from one side of the packaging to the other.	163 mm
Package depth The distance from the front to the back of the packaging.	213 mm
Package height The distance from the top to the bottom of the packaging.	243 mm
Package weight Weight of the packaged product.	1.16 kg

Sustainability
Compliance certificates	CE, RoHS

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Mounting kit
