TP-Link VIGI 8 Channel PoE+ Network Video Recorder, 8 channels, 3840 x 2160 pixels, 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720, G.711, G.711u, G.726, H.264, H.264+, H.265, H.265+, 60 fps
Security Never Shuts Down

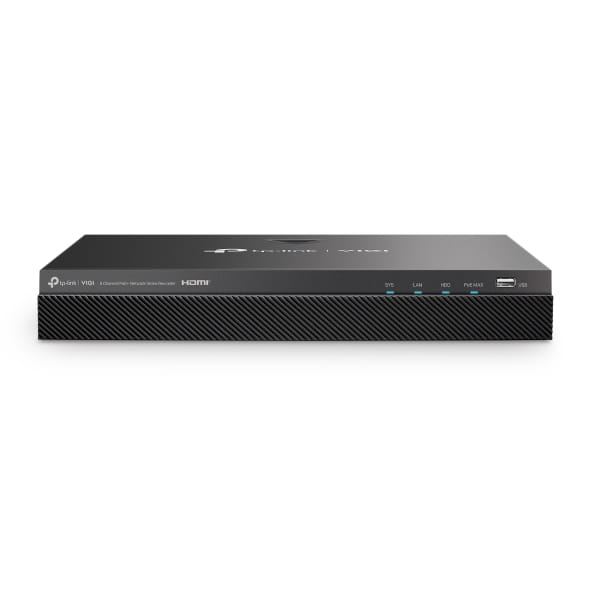

VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder
- 8-Channel Live View
- 4K HDMI Video Output
- 93W PoE Budget
- 8-Channel Live View
- Smart Video Coding
- Comprehensive Compatibility
- Auto Initialize
- 2 SATA Interfaces (1 Up to 16 TB)
Auto Initialize for Quick Configuration
Just click Auto Initialize" to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder
- 8-Channel Live View
- 4K HDMI Video Output
- 93W PoE Budget
- 8-Channel Live View
- Smart Video Coding
- Comprehensive Compatibility
- Auto Initialize
- 2 SATA Interfaces (1 Up to 16 TB)
Auto Initialize for Quick Configuration
Just click Auto Initialize" to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 8 channels |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720 |
| Video motion detection |
 |
| Video loss detection |
|
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711, G.711u, G.726 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Hard drive | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 32 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 9 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Features | |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 35 W |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 93 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 330 mm |
| Depth The distance from the front to the back of something. | 285 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.1 kg |
| Package weight Weight of the packaged product. | 4.1 kg |
| SKU | 826469 |
| MPN | VIGI NVR2008H-8MP |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
