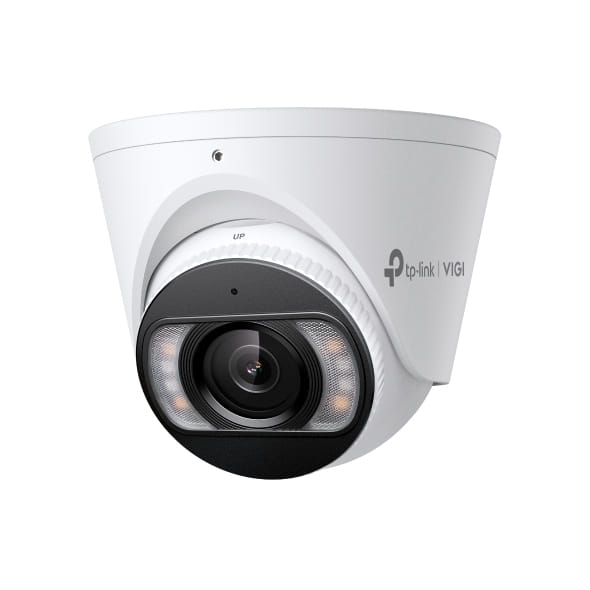

TP-Link VIGI 5MP C455(2.8mm)FC Turret Network Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Day/night mode
Dynamic range	120 dB

Design
Form factor The shape or design of the product.	Turret
Mounting type Type of mounting e.g. wall mounting.	Ceiling/wall
Product colour The colour e.g. red, blue, green, black, white.	White
Housing material What the casing of the product is made of.	Metal, Plastic
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP67

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.005 lx
Lens viewing angle, horizontal	100°
Lens viewing angle, vertical	54°
Lens viewing angle, diagonal	118°
Tilt angle range	0 - 85°
Pan range	0 - 360°
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/10000 s
Number of Privacy masking areas	4

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.7 mm (1 / 2.7")
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Number of lenses The number of lenses installed in the device.	1
Detect distance	64 m
Observe distance	27 m
Recognize distance	13 m
Maximum aperture number	1.6
Identify distance	6 m
Minimum aperture number The minimum size of the hole through which light enters a camera.	1.6
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	2.8 mm
Fixed focal length	2.8 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	4

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2988 x 1520 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2550 x 1440, 2688 x 1520
Frame rate	60 fps
Noise reduction
Noise reduction technology	3D noise reduction

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	52 dB
Built-in microphone Microphone that is found inside the product.
Bit rate range	64 - 64 Kbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Security
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
IP address filtering
Privacy protection
Digest authentication

Power
Power source type What the power source is.	DC
Power consumption (max) The maximum amount of power used by the device.	10.1 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	111 mm
Depth The distance from the front to the back of something.	111 mm
Height The measurement of the product from head to foot or from base to top.	83.7 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	480 g

Packaging content
Number of cameras The quantity of cameras that product can support.	1
