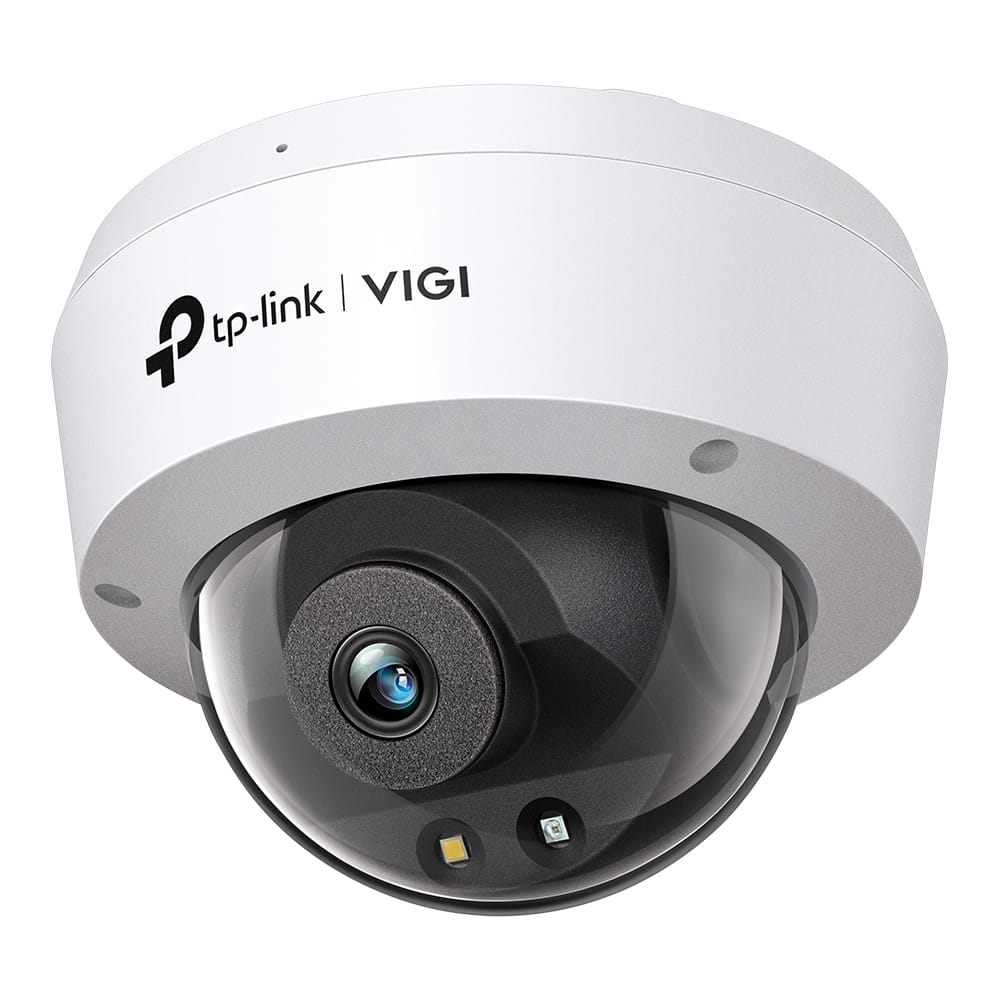

TP-Link VIGI 5MP C250 2.8mm FC Dome Network Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Built-in light There is a light which is inside/on the outside of the product.
Dynamic range	120 dB
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Ceiling
Product colour The colour e.g. red, blue, green, black, white.	White, Black
Housing material What the casing of the product is made of.	Plastic
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP67
IK code	IK10
Weatherproof

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.005 lx
Field of view (FOV) angle	128°
Lens viewing angle, horizontal	109°
Lens viewing angle, vertical	57°
Lens viewing angle, diagonal	128°
Tilt angle range	0 - 85°
Pan range	0 - 360°
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/3 - 1/10000 s
Number of Privacy masking areas	4

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.7 mm (1 / 2.7")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Number of lenses The number of lenses installed in the device.	1
Detect distance	64 m
Observe distance	27 m
Recognize distance	13 m
Maximum aperture number	1.6
Identify distance	6 m
Fixed focal length	2.8 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
Number of illumination LEDs	1
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2880 x 1620 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	5 MP
Video formats supported The type of video formats that can be used by this device.	H.264, H.264+, H.265, H.265+
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Supported video modes The video modes that can be displayed by the device.	720p, 1080p, 2560p, 2880p
Video recording Recording moving visual images.
Frame rate	30 fps
Video streaming
Noise reduction
Bit rate control	Variable Bit Rate (VBR)
Bit rate	256 Kbps - 6 Mbps
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Region of Interest (ROI) encoding
Smart IR

Audio
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	52 dB
Built-in microphone Microphone that is found inside the product.
Voice codecs	G.711

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Storage
Built-in HDD The product has a hard drive built into it.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Reset button

Power
Power source type What the power source is.	DC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	1.5 W
Power consumption (max) The maximum amount of power used by the device.	7 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions
Height The measurement of the product from head to foot or from base to top.	85.7 mm
Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.	11.5 cm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	280 g

Packaging data
Package width The distance from one side of the packaging to the other.	153 mm
Package depth The distance from the front to the back of the packaging.	193 mm
Package height The distance from the top to the bottom of the packaging.	120 mm
Package weight Weight of the packaged product.	470 g
Package type The type of product package e.g. box.	Box

Packaging content
Number of cameras The quantity of cameras that product can support.	1
