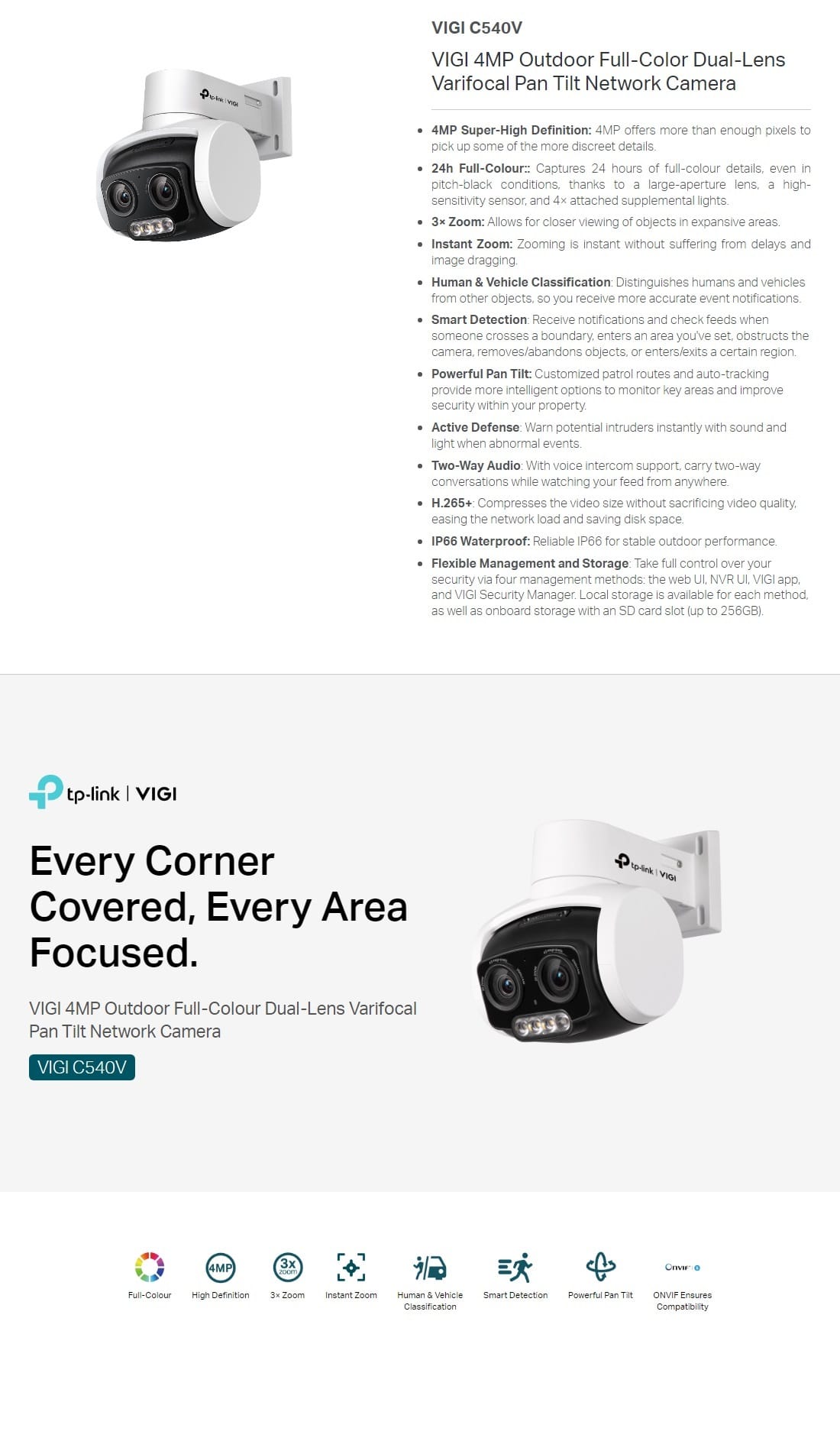

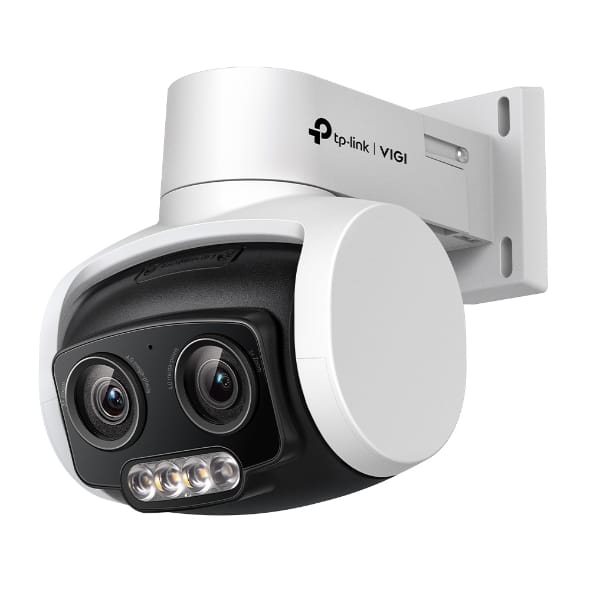

TP-Link VIGI C540V Outdoor Full-Color 4MP Dual-Lens Varifocal PT Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
Certification	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Design
Mounting type Type of mounting e.g. wall mounting.	Ceiling
Product colour The colour e.g. red, blue, green, black, white.	White, Black
Housing material What the casing of the product is made of.	Plastic
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66

Camera
Camera pan control
Camera tilt control
Lens viewing angle, horizontal	84°
Lens viewing angle, vertical	46°
Lens viewing angle, diagonal	100°
Tilt angle range	0 - 120°
Tilt speed	40 °/sec
Pan range	0 - 332°
Pan speed	55 °/sec

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3 mm (1 / 3")
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	3x
Number of lenses The number of lenses installed in the device.	1
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	4 - 12 mm
Maximum aperture number	1.6

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	1
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2560 x 1440 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	4 MP
Video formats supported The type of video formats that can be used by this device.	H.264, H.264+, H.265, H.265+
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes The video modes that can be displayed by the device.	720p, 1080p, 1440p
Video recording Recording moving visual images.
Frame rate	30 fps
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate	256 Kbps - 4 Mbps

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Power
Power source type What the power source is.	PoE
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	2.9 W
Power consumption (max) The maximum amount of power used by the device.	14 W
DC output voltage	12

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	136 mm
Depth The distance from the front to the back of something.	139 mm
Height The measurement of the product from head to foot or from base to top.	107 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	430 g

Packaging data
Package weight Weight of the packaged product.	660 g
Package type The type of product package e.g. box.	Box

Packaging content
Number of cameras The quantity of cameras that product can support.	1
