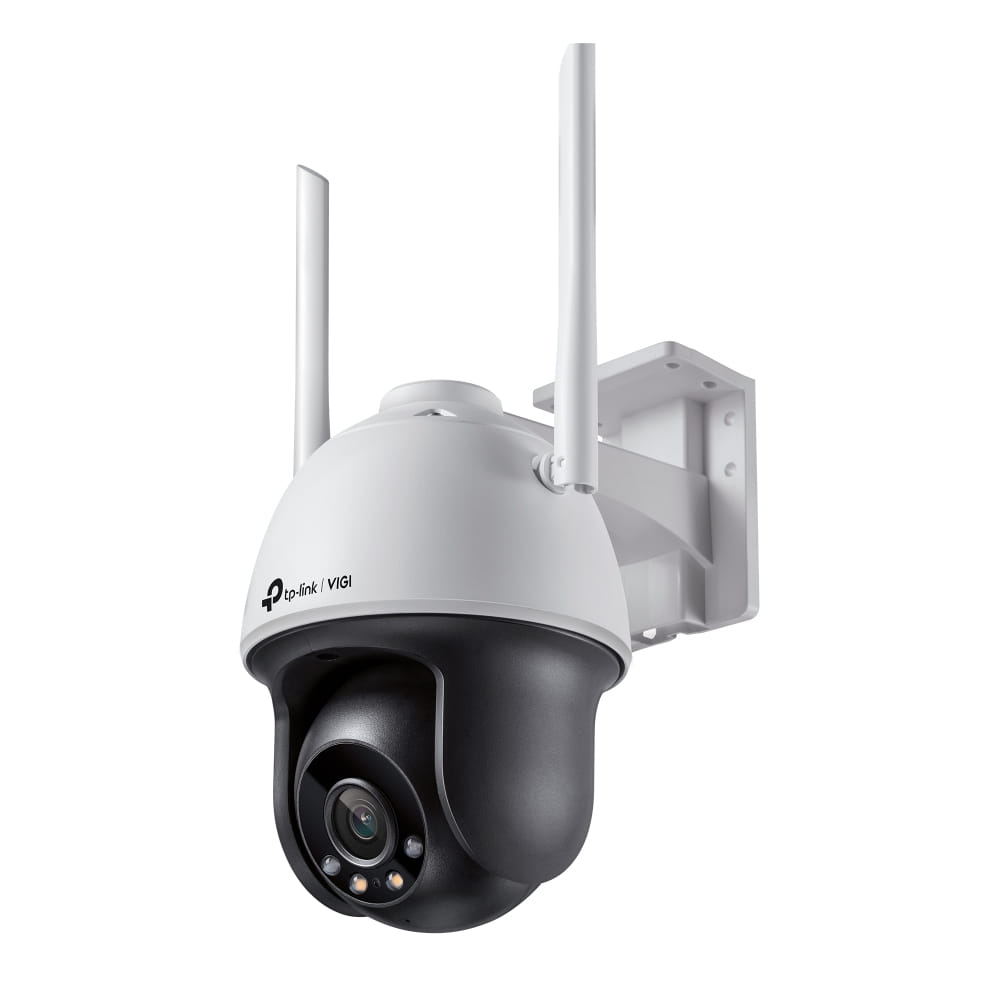

TP Link VIGI C540 W V1, IP security camera, Indoor & outdoor, Wired & Wireless, RCM, BSMI, VCCI, NCC, JRF, KC, Ceiling/wall, Black, White
Powerful Pan Tilt
Cover every corner flexibly with VIGI s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2 -2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24 hour clear and colorful details even in pitch dark night. VIGI Full Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you ve set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two way audio.
Smart IR
Keeps objects from being under rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on board storage with an SD card slot (up to 256 GB).
Cover every corner flexibly with VIGI s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2 -2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24 hour clear and colorful details even in pitch dark night. VIGI Full Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you ve set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two way audio.
Smart IR
Keeps objects from being under rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on board storage with an SD card slot (up to 256 GB).
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Certification | RCM, BSMI, VCCI, NCC, JRF, KC |
| Design | |
| Form factor The shape or design of the product. | Turret |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Plastic |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Camera | |
| Camera pan control |
 |
| Camera tilt control |
|
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
| Tilt angle range | 0 - 120° |
| Pan range | 0 - 350° |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 3 mm (1 / 3") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Number of lenses The number of lenses installed in the device. | 1 |
| Lens diameter The size of the lens, measured by drawing a straight line from one side to the other, going through the centre of the lens. | 4 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming |
|
| Noise reduction |
|
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking |
|
| Bit rate | 256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR) |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Live view |
|
| Number of simultaneous live view channels | 3 channels |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA2-PSK |
| HTTPS encryption |
|
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Mirror |
|
| Digest authentication |
|
| Management features | |
| Reset button |
|
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (Power over Ethernet (PoE)) | 14 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 172 mm |
| Height The measurement of the product from head to foot or from base to top. | 198 mm |
| Features | |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 163 mm |
| Package depth The distance from the front to the back of the packaging. | 243 mm |
| Package height The distance from the top to the bottom of the packaging. | 243 mm |
| Package weight Weight of the packaged product. | 1.21 kg |
| Sustainability | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| SKU | 719906 |
| MPN | VIGI C540-W(4mm) |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
