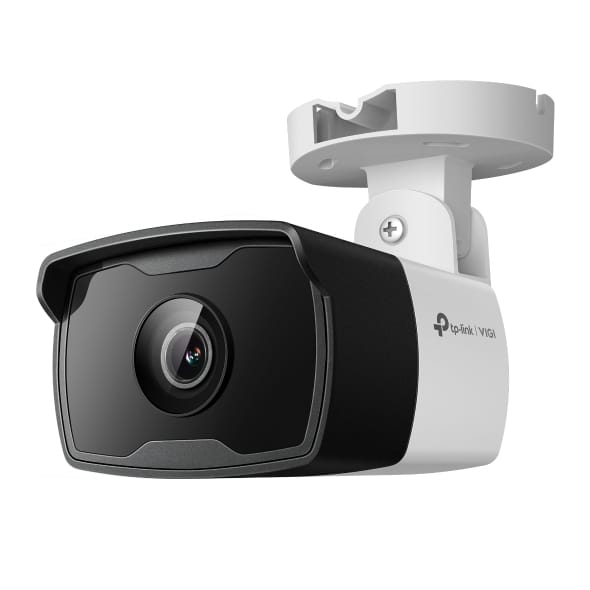

TP Link VIGI 4MP C340I(6mm) Outdoor IR Bullet Network Camera,6mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super High Definition: The VIGI C340I camera comes with 4MP more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265 : Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
4MP Super High Definition: The VIGI C340I camera comes with 4MP more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265 : Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/Wall/Pole |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Plastic |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.01 lx |
| Lens viewing angle, horizontal | 47.7° |
| Lens viewing angle, vertical | 26.5° |
| Lens viewing angle, diagonal | 56° |
| Tilt angle range | -90 - 90° |
| Pan range | -90 - 90° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 3 mm (1 / 3") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Detect distance | 120 m |
| Observe distance | 50 m |
| Recognize distance | 24 m |
| Maximum aperture number | 2 |
| Identify distance | 12 m |
| Fixed focal length | 6 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Supported video modes The video modes that can be displayed by the device. | 240p, 480p, 720p, 1080p, 1280p, 1440p |
| Frame rate | 30 fps |
| Video streaming |
|
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking |
|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Digital Wide Dynamic Range (DWDR) |
|
| Region of Interest (ROI) encoding |
|
| Smart IR |
|
| 3D positioning |
|
| Audio | |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 52 dB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Number of simultaneous live view channels | 3 channels |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Intelligent Video Surveillance (IVS) system features | Region entrance detection, Vehicle detection, Region exiting detection, Crossing line |
| Mirror |
|
| Password reset via email |
|
| Human and vehicle targets classification |
|
| Digest authentication |
|
| Network access storage (NAS) |
|
| Management features | |
| Web browser |
|
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.32 W |
| Power consumption (max) The maximum amount of power used by the device. | 5 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 73 mm |
| Height The measurement of the product from head to foot or from base to top. | 71 mm |
| Length The measurement or extent of something from end to end. | 174 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Packaging data | |
| Package weight Weight of the packaged product. | 350 g |
| Package type The type of product package e.g. box. | Box |
| Sustainability | |
| Sustainability compliance |
|
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| Manual |
|
| SKU | 734381 |
| MPN | VIGI C340I(6mm) |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
