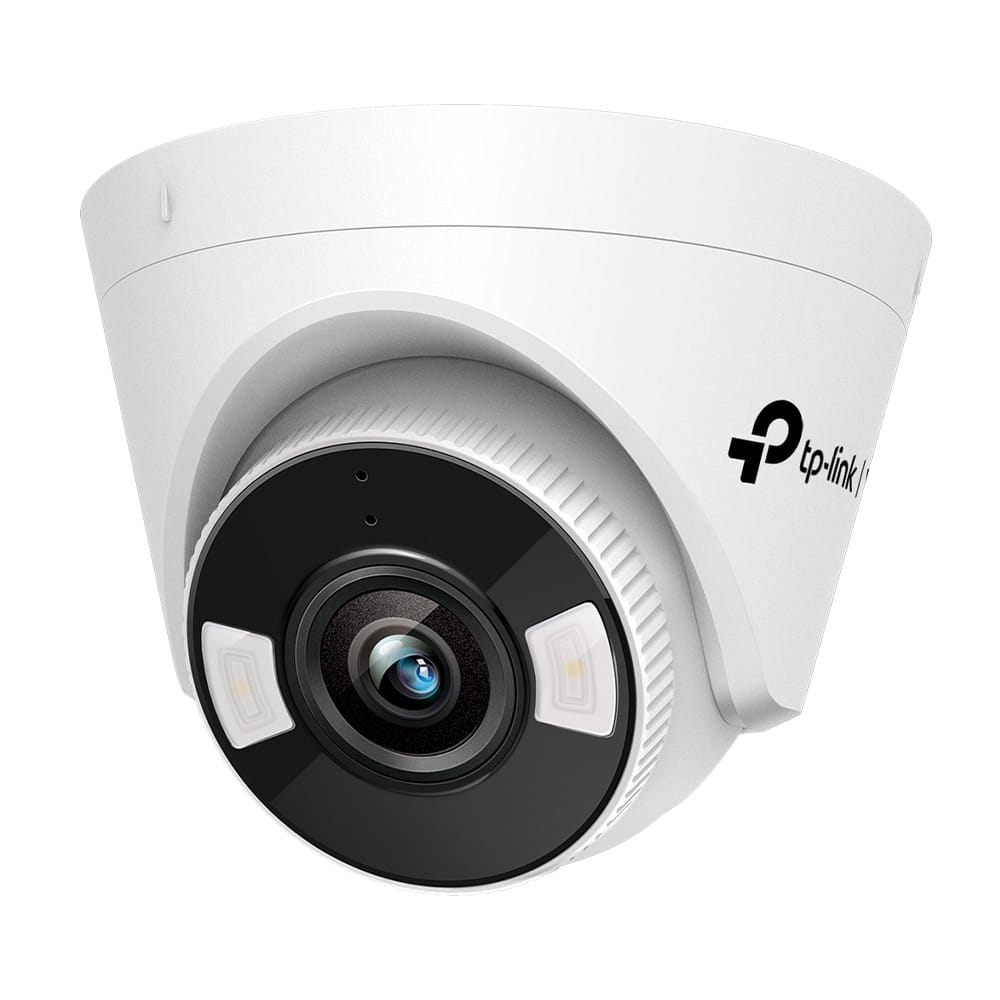

TP Link VIGI C430, IP security camera, Indoor & outdoor, Wired, CE/BSMI/VCCI/ONVIF, Ceiling, Black, White
All The Colors, All The Time
3MP Full Color Turret Network Camera
Clarity and Colors, All in One
Monitor 24 hour clear and colorful details even in pitch dark night. VIGI Full Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built In Microphone
The VIGI camera features a built in microphone to record anything going on within a 15 ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Never miss a detail.
SmartVid Smart Video Enhancement
VIGI s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Flexible Installation Gives You More Convenience.
Easily route your camera s cable into a dropped ceiling or avoid drilling by slotting it through the camera s side outlet.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP Link is dedicated to protecting the business you ve worked hard to build " whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
3MP Full Color Turret Network Camera
Clarity and Colors, All in One
Monitor 24 hour clear and colorful details even in pitch dark night. VIGI Full Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built In Microphone
The VIGI camera features a built in microphone to record anything going on within a 15 ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Never miss a detail.
SmartVid Smart Video Enhancement
VIGI s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Flexible Installation Gives You More Convenience.
Easily route your camera s cable into a dropped ceiling or avoid drilling by slotting it through the camera s side outlet.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP Link is dedicated to protecting the business you ve worked hard to build " whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Certification | CE/BSMI/VCCI/ONVIF |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Plastic |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.005 lx |
| Lens viewing angle, horizontal | 89.1° |
| Lens viewing angle, vertical | 45.1° |
| Lens viewing angle, diagonal | 106.9° |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Panoramic camera | |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) |
|
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Lens diameter The size of the lens, measured by drawing a straight line from one side to the other, going through the centre of the lens. | 4 mm |
| Maximum aperture number | 1.6 |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2304 x 1296 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming |
|
| Noise reduction |
|
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking |
|
| Bit rate | 64 Kbps to 4 Mbps |
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Smart IR |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Mirror |
|
| Password reset via email |
|
| Digest authentication |
|
| Management features | |
| Web browser |
|
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
| Power source type What the power source is. | DC, PoE |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 123 mm |
| Depth The distance from the front to the back of something. | 83 mm |
| Height The measurement of the product from head to foot or from base to top. | 123 mm |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| SKU | 718106 |
| MPN | VIGI C430(4mm) |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
