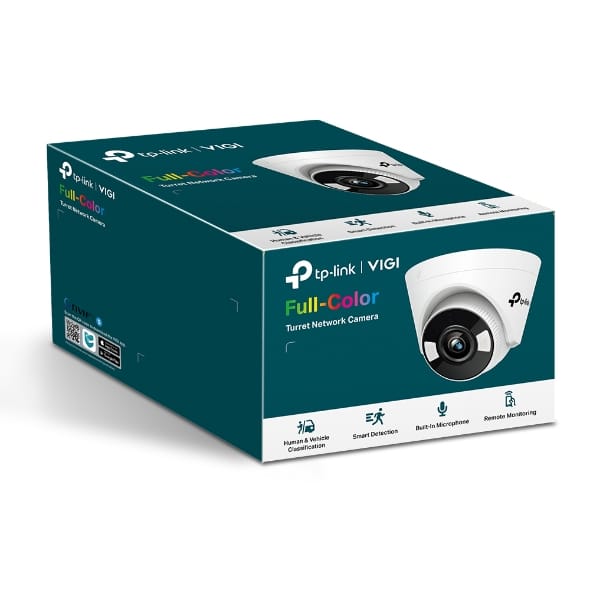

TP Link VIGI 3MP C430(2.8mm) Full Colour Turret Network Camera, 2.8mm Lens, Smart Detection, 2YW (LD)
VIGI 3MP Full Colour Turret Network Camera
3MP Super High Definition: The camera comes with 3MP "more than enough pixels to pick up some of the more discrete details.
24h Full Colour: Obtain 24 hour colour details, even in pitch black conditions, with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
Built In Microphone: Features a built in microphone to record anything going on within a 15 ft radius of the camera.
H.265 : Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
3MP Super High Definition: The camera comes with 3MP "more than enough pixels to pick up some of the more discrete details.
24h Full Colour: Obtain 24 hour colour details, even in pitch black conditions, with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
Built In Microphone: Features a built in microphone to record anything going on within a 15 ft radius of the camera.
H.265 : Without using any extra bandwidth, your cameras transmit compressed crystal clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Design | |
| Form factor The shape or design of the product. | Turret |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Plastic |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.005 lx |
| Lens viewing angle, horizontal | 107.5° |
| Lens viewing angle, vertical | 57.2° |
| Lens viewing angle, diagonal | 128.7° |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2304 x 1296 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Frame rate | 25 fps |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Privacy masking |
|
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Digital Wide Dynamic Range (DWDR) |
|
| Region of Interest (ROI) encoding |
|
| Smart IR |
|
| 3D positioning |
|
| Audio | |
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Live view |
|
| Number of simultaneous live view channels | 3 channels |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Mirror |
|
| Password reset via email |
|
| Human and vehicle targets classification |
|
| Digest authentication |
|
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (max) The maximum amount of power used by the device. | 4.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 123 mm |
| Depth The distance from the front to the back of something. | 83 mm |
| Height The measurement of the product from head to foot or from base to top. | 123 mm |
| Sustainability | |
| Sustainability compliance |
|
| Compliance certificates | BSMI, CE |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| Manual |
|
| SKU | 732908 |
| MPN | VIGI C430(2.8mm) |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
