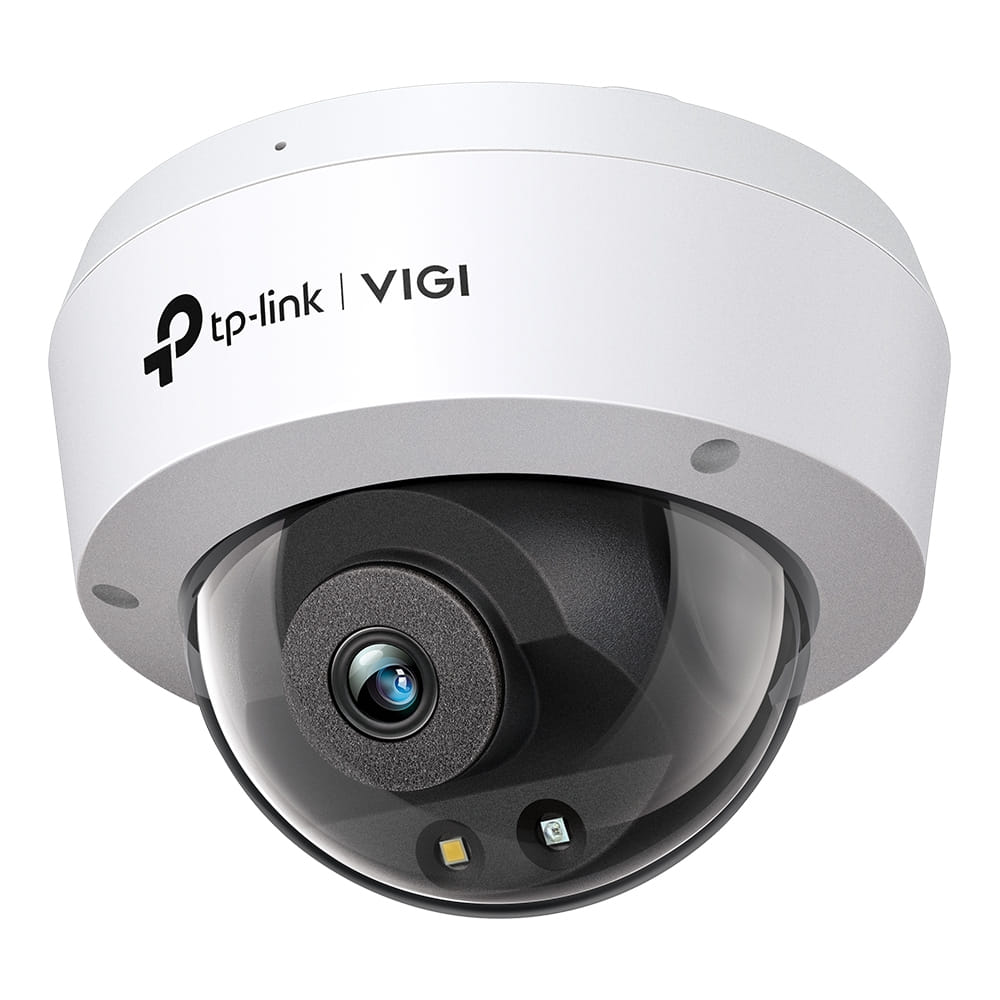

TP Link VIGI C230(2.8mm), IP security camera, Indoor & outdoor, Wired, Ceiling, White, Dome
Clarity and Colors, All in One
Monitor 24 hour clear and colorful details even in pitch dark night. VIGI Full Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built In Microphone
The VIGI camera features a built in microphone to record anything going on within a 15 ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
IK10 Vandal Proof & IP67 Waterproof
With vandal resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
Monitor 24 hour clear and colorful details even in pitch dark night. VIGI Full Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large aperture lens, high sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you ve set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built In Microphone
The VIGI camera features a built in microphone to record anything going on within a 15 ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
IK10 Vandal Proof & IP67 Waterproof
With vandal resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Day/night mode |
 |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| IK code | IK10 |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 107.5° |
| Lens viewing angle, vertical | 57.2° |
| Lens viewing angle, diagonal | 128.7° |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 360° |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2304 x 1296 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Video streaming |
|
| Noise reduction |
|
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking |
|
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Digital Wide Dynamic Range (DWDR) |
|
| Smart IR |
|
| Audio | |
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Mirror |
|
| Password reset via email |
|
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (max) The maximum amount of power used by the device. | 4.7 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 115 mm |
| Depth The distance from the front to the back of something. | 86 mm |
| Height The measurement of the product from head to foot or from base to top. | 115 mm |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 718070 |
| MPN | VIGI C230(2.8mm) |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
