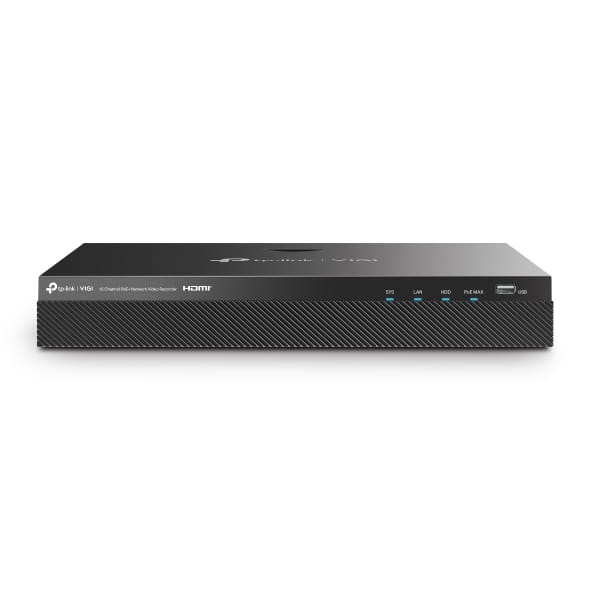

TP-Link VIGI NVR2016H-16MP, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 ?-law, G.726
TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection |
 |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls |
|
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes The different ways in which this device can record. | Manual, Schedule |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 0 GB |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| Internal SATA ports quantity | 2 |
| eSATA |
|
| Line-in |
|
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | UPnP (Plug and Play), NTP (Network Timing) |
| Features | |
| Reset button |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 40 W |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 330 mm |
| Depth The distance from the front to the back of something. | 285 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.1 kg |
| Package weight Weight of the packaged product. | 4.1 kg |
| Packaging content | |
| Cables included | AC |
| AC adapter included |
|
| Quick installation guide |
|
| SKU | 825825 |
| MPN | VIGI-NVR2016H-16MP |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
