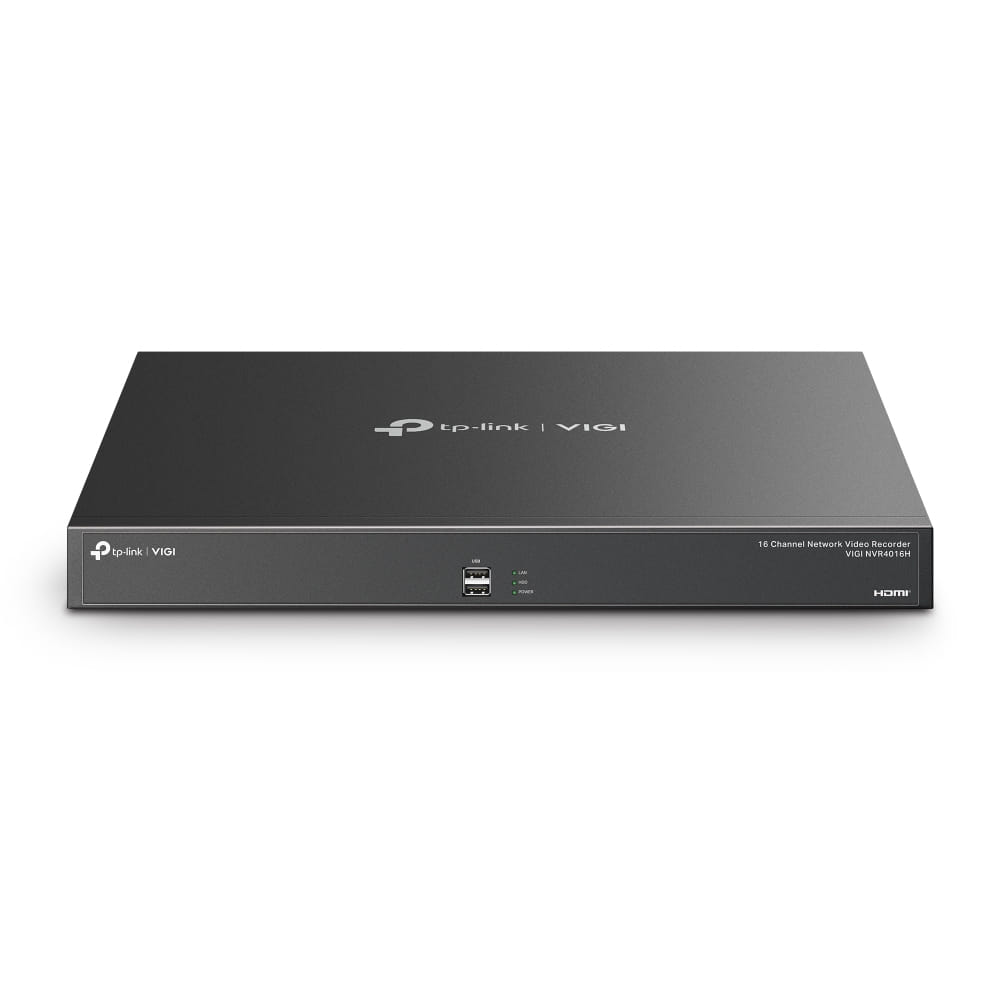

TP-Link VIGI NVR4016H, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, G.711, G.711u, G.726
Security Never Shuts Down
16 Channel Network Video Recorder
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
Auto Initialize for Quick Configuration
Just click Auto Initialize" to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
16 Channel Network Video Recorder
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
Auto Initialize for Quick Configuration
Just click Auto Initialize" to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video motion detection |
 |
| Video loss detection |
|
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711, G.711u, G.726 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Backup function The function if the main power source fails. |
|
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 320 Mbit/s |
| Recording modes The different ways in which this device can record. | Manual, Schedule |
| Audio system System used to play music or speech. | 2-way |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 0 GB |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 64 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| eSATA |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Reset button |
|
| Buzzer off |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 45 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1.5 A |
| System requirements | |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Browser supported List of supported browsers for this product. | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4 kg |
| Package width The distance from one side of the packaging to the other. | 440 mm |
| Package depth The distance from the front to the back of the packaging. | 528 mm |
| Package height The distance from the top to the bottom of the packaging. | 100 mm |
| Package weight Weight of the packaged product. | 5 kg |
| Packaging content | |
| Packaging content | - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet |
| SKU | 817498 |
| MPN | VIGI NVR4016H |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
