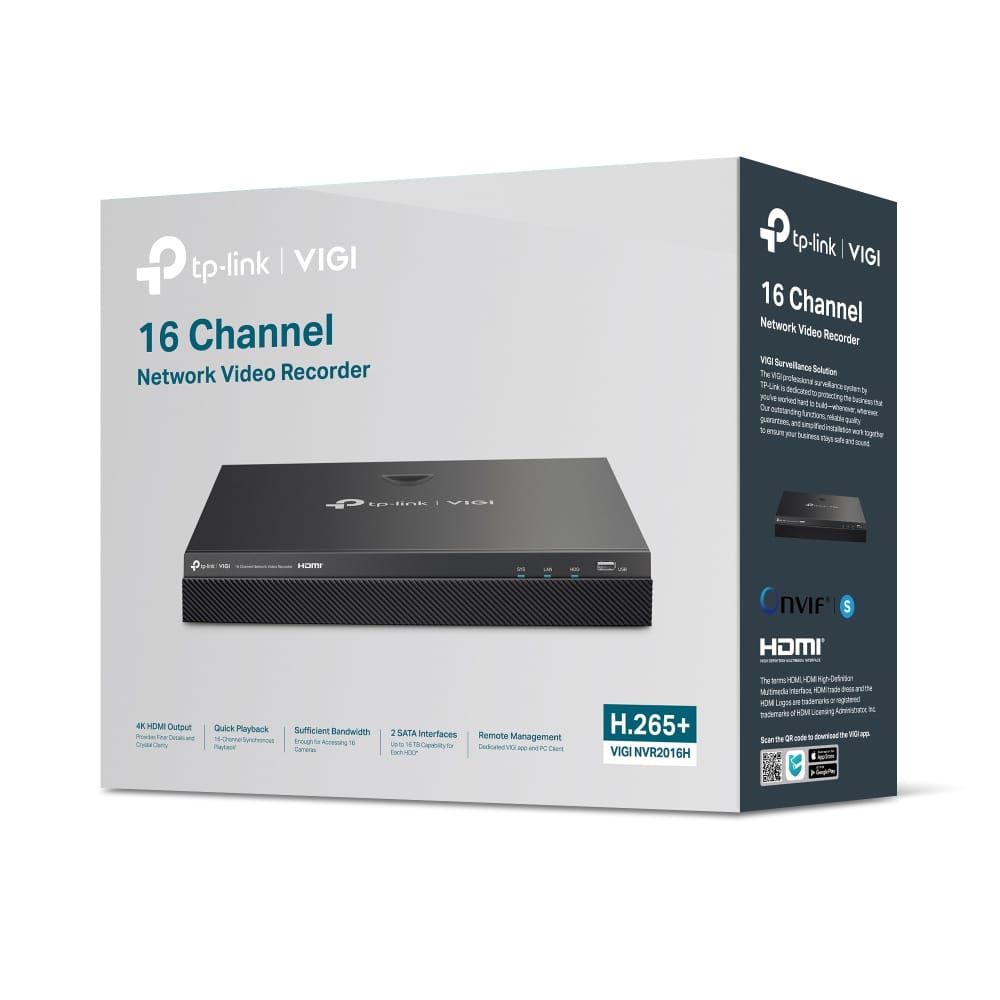

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode, H.265+, ONVIF, 2-Way Audio, Remote Monitoring (HDD Not Included)
VIGI NVR2016H
VIGI 16 Channel Network Video Recorder
4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility
VIGI 16 Channel Network Video Recorder
4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection |
 |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls |
|
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes The different ways in which this device can record. | Manual, Schedule |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 0 GB |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| Internal SATA ports quantity | 2 |
| eSATA |
|
| Line-in |
|
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | UPnP (Plug and Play), NTP (Network Timing) |
| Features | |
| Reset button |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 24.16 W |
| Output current | 3.3 A |
| Output voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 330 mm |
| Depth The distance from the front to the back of something. | 285 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.9 kg |
| Package weight Weight of the packaged product. | 3.2 kg |
| SKU | 759308 |
| MPN | VIGI NVR2016H |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
