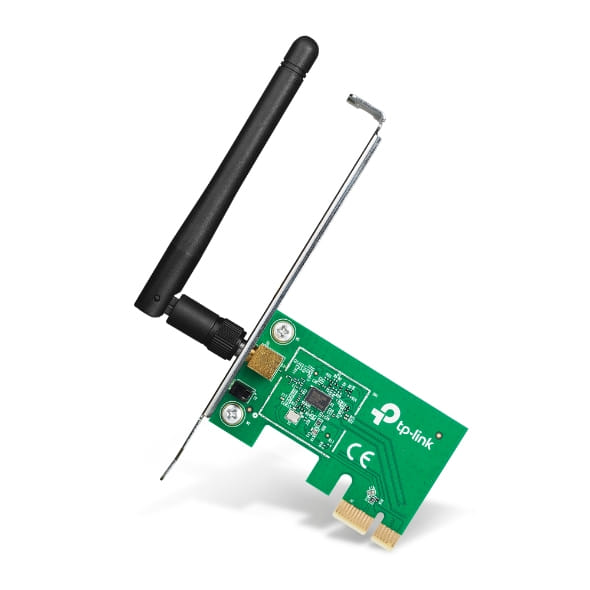

TP-Link TL-WN781ND 150Mbps Wireless Lite N PCI Express Adapter

Item No:
216272
MPN:
TL-WN781ND
$14.00

TP-Link TL-WN781ND 150Mbps Wireless Lite N PCI Express Adapter

$14.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 1-2 business days
Store Availability
  • 2-3 business days at Bankstown
  • 2-3 business days at Blacktown
  • 2-3 business days at Castle Hill
Shipping Estimate

 Software Specification
StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Speed11n: Up to 150Mbps11g: Up to 54Mbps11b: Up to 11Mbps
Frequency Range2.4-2.4835GHz
Wireless Transmit Power18dBm(MAX EIRP)
Modulation TypeOFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity(without Standards antenna)130M: [email protected]/* */% PER108M: [email protected]/* */% PER54M: [email protected]/* */% PER11M: [email protected]/* */% PER6M: [email protected]/* */% PER1M: [email protected]/* */% PER
Work ModeAd-HocInfrastructure
Wireless Security64/128 bits WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating SystemWindows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000

Hardware Specification

Interface

PCI Express

Antenna Type

Mini-omni, 2dBi

Certifications

CE, FCC

Operating Temperature

0oC~40oC (32oF~104oF)

Storage Temperature

-40oC~70oC (-40oF~158oF)

Relative Humidity

10% ~ 90%, non-condensing

Storage Humidity

5%~90% non-condensing

Dimensions

4.8x 3.1x 0.8 in. (120.8 x 78.5 x 21.5 mm)

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wireless
Host interface Interface that enables a host controller to communicate with a driver. PCI Express
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. WLAN
Network
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 150 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi band The frequency bands the product features. Single-band (2.4 GHz)
Frequency range 2.4 - 2.4835 GHz
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. 128-bit WEP,64-bit WEP,WPA-PSK,WPA2-PSK
Design
Product colour The colour e.g. red, blue, green, black, white. Green
Internal The product is built in.
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. Atheros
Certification CE, FCC
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
System requirements
Compatible operating systems List of desktop operating systems tested as compatible with this product. Win 98SE,ME,2000,XP 32 bit/64 bit, Vista 32 bit/64 bit, 7 32 bit/64 bit
Other features
Gain 2 dBi
Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product IEEE 802.11b/g/n
Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). 78.5 x 120.8 x 21.5 mm
Link/Act LED
More Information
SKU 216272
MPN TL-WN781ND
Brand TP-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period 3 Years Warranty
Warranty Contact https://www.tp-link.com/
