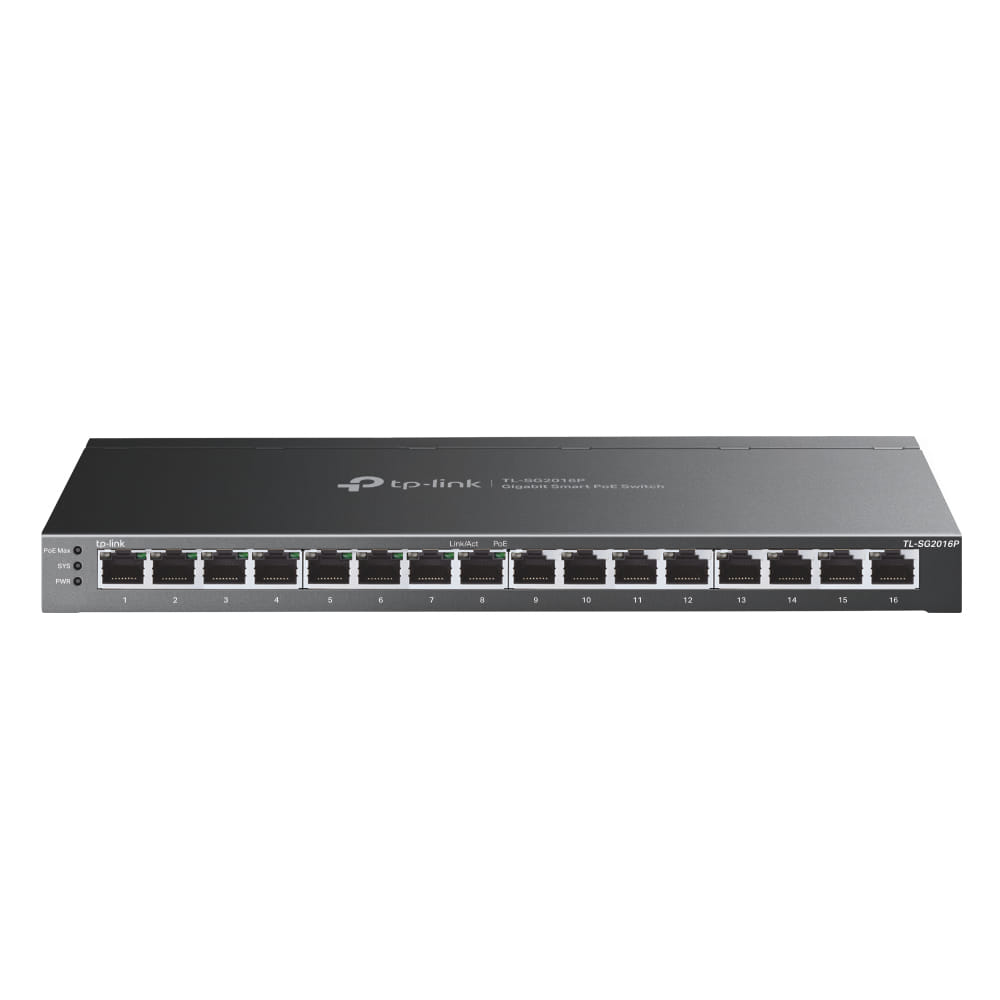

TP Link JetStream 16 Port Gigabit Smart Switch with 8 Port PoE , L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Smarter Switching for Smarter Results
JetStream 16 Port Gigabit Smart Switch with 8 Port PoE
Multiple Application Scenarios
The TL SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Value Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user defined network rules and help you create the network regulations you need.
QoS for Lag Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag free.
VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.
Omada SDN Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
JetStream 16 Port Gigabit Smart Switch with 8 Port PoE
Multiple Application Scenarios
The TL SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Value Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user defined network rules and help you create the network regulations you need.
QoS for Lag Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag free.
VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.
Omada SDN Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Management features | |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L3/L4 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Cloud-managed |
|
| ARP inspection |
|
| Configuring Location Settings (CLI) |
|
| System event log |
|
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Throughput | 16 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Number of queues | 8 |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Security | |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| SSH/SSL support |
|
| BPDU filtering/protection |
|
| IP-MAC-Port binding |
|
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Multicast features | |
| Multicast support |
|
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| GARP VLAN Registration Protocol (GVRP) |
|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators | PoE, Power, System |
| Certification | CE, FCC, RoHS |
| Performance | |
| Firmware upgradeable |
|
| Fanless |
|
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC/PoE |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) The maximum amount of power used by the device. | 146.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 499.98 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 286 mm |
| Depth The distance from the front to the back of something. | 111.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 25.4 mm |
| Packaging data | |
| Manual |
|
| SKU | 725816 |
| MPN | TL-SG2016P |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
