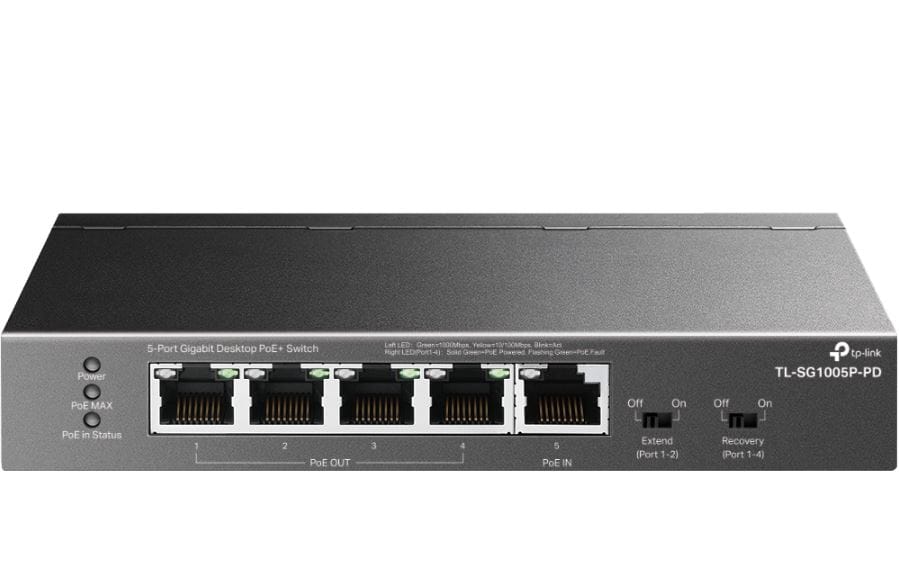

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
Ports: 5 - 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Warranty Period: 5-Year
Ports: 5 - 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Warranty Period: 5-Year
| Management features | |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 5 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| MAC address auto-learning supported |
|
| MAC address auto-aging supported |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Store-and-forward |
|
| Security | |
| IGMP snooping |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Certification | CE, FCC, RoHS |
| Performance | |
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | PoE |
| Power supply included There is a power supply with this product. |
 |
| Power consumption (max) The maximum amount of power used by the device. | 68.59 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 5 |
| Total Power over Ethernet (PoE) budget | 66 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 233.206 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 158 mm |
| Depth The distance from the front to the back of something. | 101 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Packaging data | |
| User guide |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 766688 |
| MPN | TL-SG1005P-PD |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
