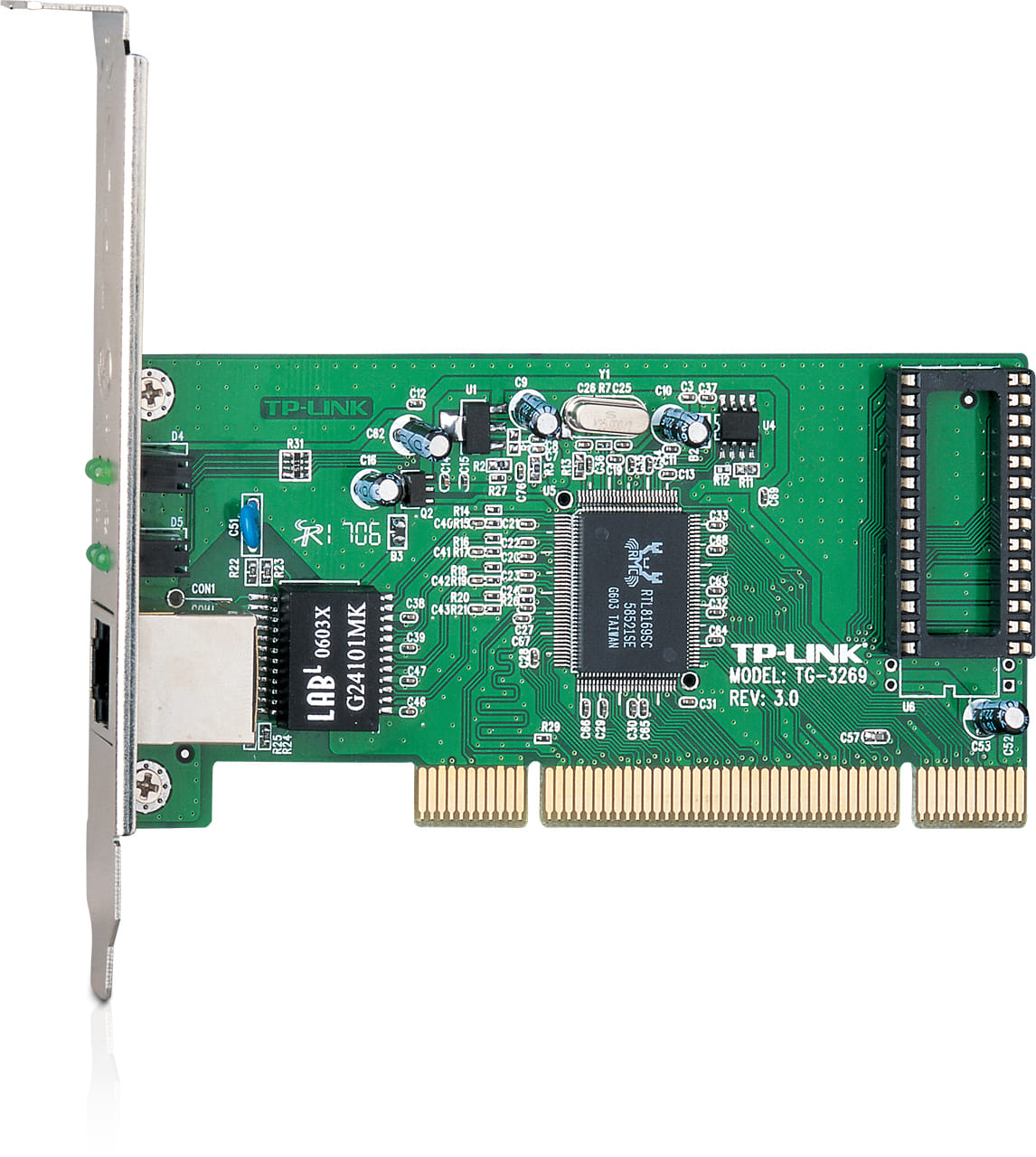

TG-3269 is a 10/100/1000Mbps, 32Bit PCI-bus Gigabit Ethernet adapter. With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Full range of drivers are provided for major Operating Systems.
Features:
- Comply IEEE802.1P, IEEE802.1Q, IEEE802.3 10 Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
- 32bit, 33/66 MHZ PCI bus master capability
- 10/100/1000Mbps triple speed, full/half duplex operation
- Up to 1000Mbps when full duplex operation mode
- IEEE 802.3x Full Duplex flow control and supports both symmetrical and asymmetrical flow control.
- IEEE 802.1p, 802.1Q ,802.3ab compliant
- PCI Specification Revision 2.2 compliant
- Easy-to-view led for diagnostics
- Automatic MDI/MDIX crossover for all 3 speeds
- Large transmit & receive FIFO
- Auto configure IRQ and I/O address
Specifications:
| Standard Conformance: | IEEE802.1p, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE802.3ab 1000Base-T |
| Access Method: | CSMA/CD |
| PCI Bus: | 32bit, 33/66MHz PCI Bus |
| Number of Ports | Single 10M/100M/1000m Utp/STP port |
| LED Indicators: | one for 10M link/Activity; one for 100M Link/Activity, one for 1000M Link/Activity, one for Full-duplex |
| Network Media (Cable): | 10Base-T: UTP category 3, 4,5 cable up to 100m100Base-TX: UTP category 5 cable up to 100m1000Base-T: UTP category 6 cable up to 100m (recommend to use cat.5e cable) |
| Drivers Support: | Netware 4.2, 5.x and 6.x ODI driver Microsoft Window 98, Windows 98SE, Windows ME Windows 2000, Windows XP Windows NT Linux |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Jumbo frames support |
|
| Design | |
| Internal The product is built in. |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators |
|
| Certification | FCC, CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 95/98/ME/NT4.0/2000/2003/XP/Vista Netware Linux |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 2000,Windows 2000 Professional,Windows 95,Windows 98,Windows ME,Windows NT,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Slot type | 32-bit 33/66MHz PCI |
| Flow control support |
|
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | 10/100/1000 Mbps |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 1 |
| Power management | ACPI, PCI |
| SKU | 216244 |
| MPN | TG-3269 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
