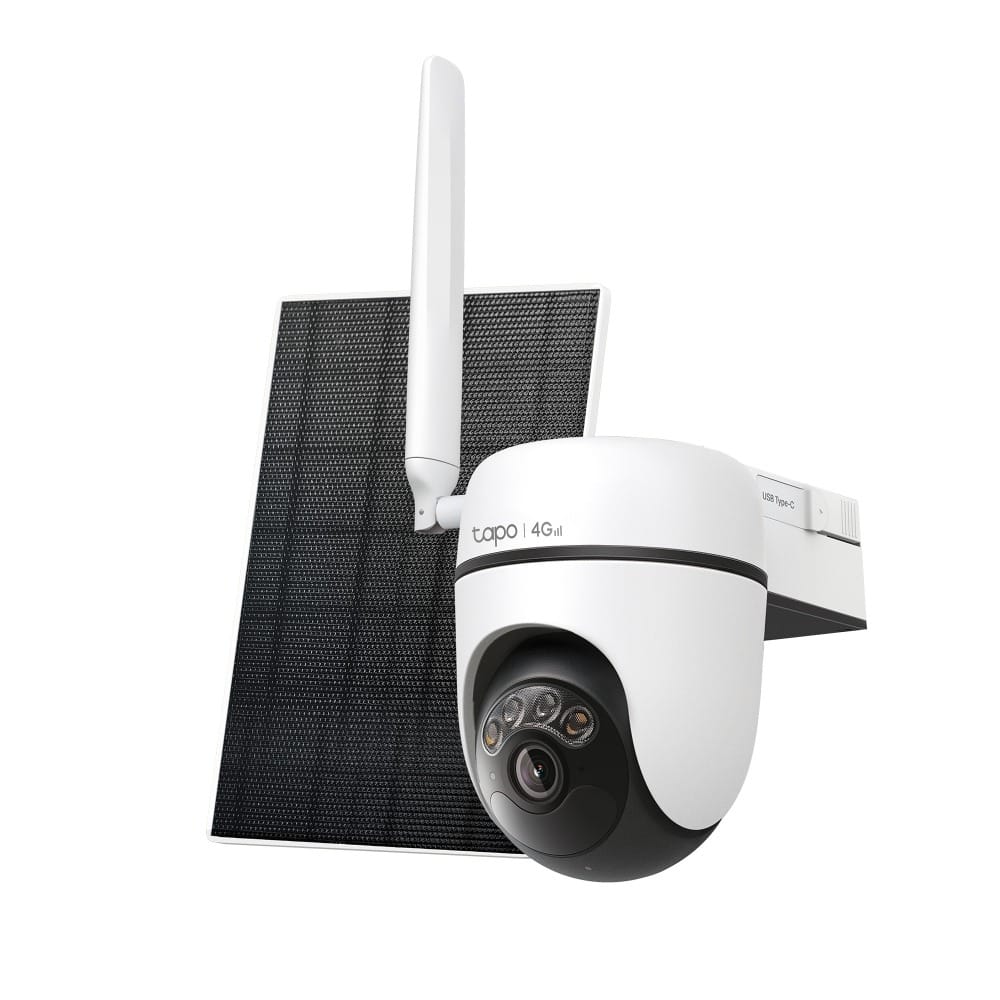

TP-Link TC90G KIT Solar-Powered Pan/Tilt 4G LTE Security Camera Kit

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wireless
Wide Dynamic Range (WDR)
Built-in light There is a light which is inside/on the outside of the product.
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Certification	CE, NTRA, RCM, IP65

Design
Form factor The shape or design of the product.	Bulb
Mounting type Type of mounting e.g. wall mounting.	Ceiling/Wall/Pole
Product colour The colour e.g. red, blue, green, black, white.	White
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP65
Weatherproof

Camera
Camera pan control
Camera tilt control
Lens viewing angle, horizontal	84.4°
Lens viewing angle, vertical	44.3°
Lens viewing angle, diagonal	100.6°
Tilt angle range	0 - 90°
Pan range	0 - 340°

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.8 mm (1 / 2.8")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Number of lenses The number of lenses installed in the device.	1
Maximum aperture number	1.6
Fixed focal length	4 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	10 m
LED type	IR/White
Number of illumination LEDs	4
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2304 x 1296 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	3 MP
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	2304 x 1296
Frame rate	15 fps
Noise reduction
Image quality adjustment	DNR

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Audio system System used to play music or speech.	2-way
Audio input channels A channel is an electric circuit which acts as a path for a signal. Audio input channels allow audio signals to be communicated to the device.	2.0 channels
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	2.0 channels
Built-in microphone Microphone that is found inside the product.
Number of microphones	1

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Live view

Storage
Built-in HDD The product has a hard drive built into it.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	512 GB

Ports & interfaces
Microphone in The socket where a microphone is connected to the device.

Security
Built-in siren
Siren noise level	97.2 dB
Video motion detection
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSL/TLS, WPA, WPA2-PSK
Alert notification type	Snapshot alert message
Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems.

Management features
Cloud-managed
Reset button

Power
Power source type What the power source is.	Battery, Solar
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
AC input frequency	50-60 Hz
Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd).	Lithium-Ion (Li-Ion)
Number of batteries supported The number of batteries that can be used with the product.	1

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-20 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%

System requirements
Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device.	Android 7.0, iOS 12

Weight & dimensions
Width The measurement or extent of something from side to side.	130.9 mm
Depth The distance from the front to the back of something.	116.1 mm
Height The measurement of the product from head to foot or from base to top.	84.1 mm

Packaging data
Package width The distance from one side of the packaging to the other.	247 mm
Package depth The distance from the front to the back of the packaging.	200 mm
Package height The distance from the top to the bottom of the packaging.	148 mm
Package weight Weight of the packaged product.	1.32 kg

Packaging content
Number of cameras The quantity of cameras that product can support.	1
