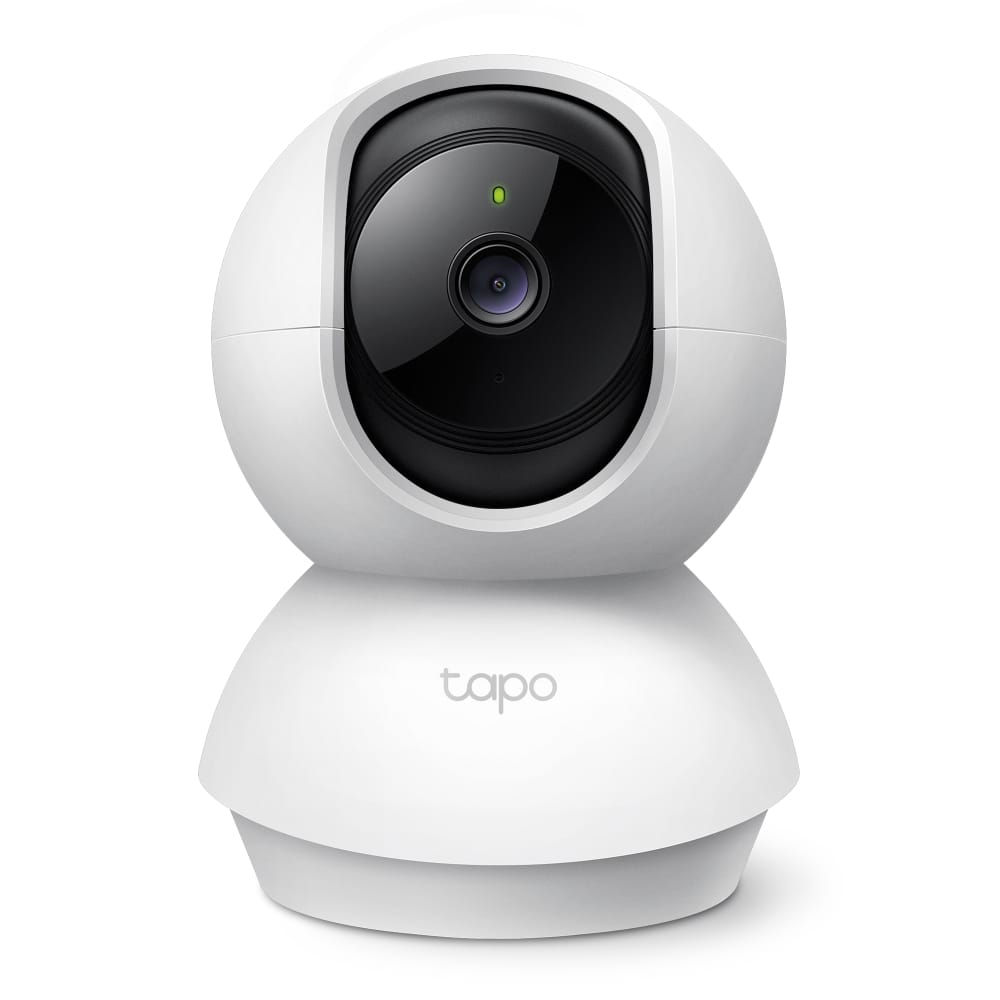

TP-Link TC71 Pan/Tilt Home Security WiFi Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wireless
Auto-tracking
Virtual assistant Depending on the make of the device, a different application is pre-installed that can understand voice commands and complete tasks for a user, e.g. Apple Siri, Amazon Alexa.	Amazon Alexa & Google Assistant
Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz.	2400 MHz

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Desk
Product colour The colour e.g. red, blue, green, black, white.	White

Camera
Camera pan control
Camera tilt control
Pan range	0 - 360°

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.8 mm (1 / 2.8")

Lens system
Number of lenses The number of lenses installed in the device.	1
Fixed focal length	4 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	9 m
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2304 x 1296 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	3 MP
Video compression formats	H.264
Video recording Recording moving visual images.
Frame rate	15 fps
Video streaming

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Audio system System used to play music or speech.	2-way
Built-in microphone Microphone that is found inside the product.
Audio detection

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, DHCP, ARP, ICMP ,DNS, NTP, HTTP, HTTPS, UDP, ONVIF, RTSP
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	512 GB

Ports & interfaces
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Security
Video motion detection
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	128-bit AES, HTTPS, SSL/TLS, WPA, WPA2-PSK
Privacy protection

Management features
Reset button

Power
Power source type What the power source is.	DC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 / 60 Hz
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	1.78 W
Power consumption (max) The maximum amount of power used by the device.	3.27 W
DC output voltage	9
DC output current	0.6 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	86.5 mm
Depth The distance from the front to the back of something.	85 mm
Height The measurement of the product from head to foot or from base to top.	117.7 mm
Cable length How long the cable is.	3 m

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Cables included	AC
Screws included
Manual
Anchors included
Mounting template

Technical details
Sustainability compliance
Sustainability certificates	CE, EAC
