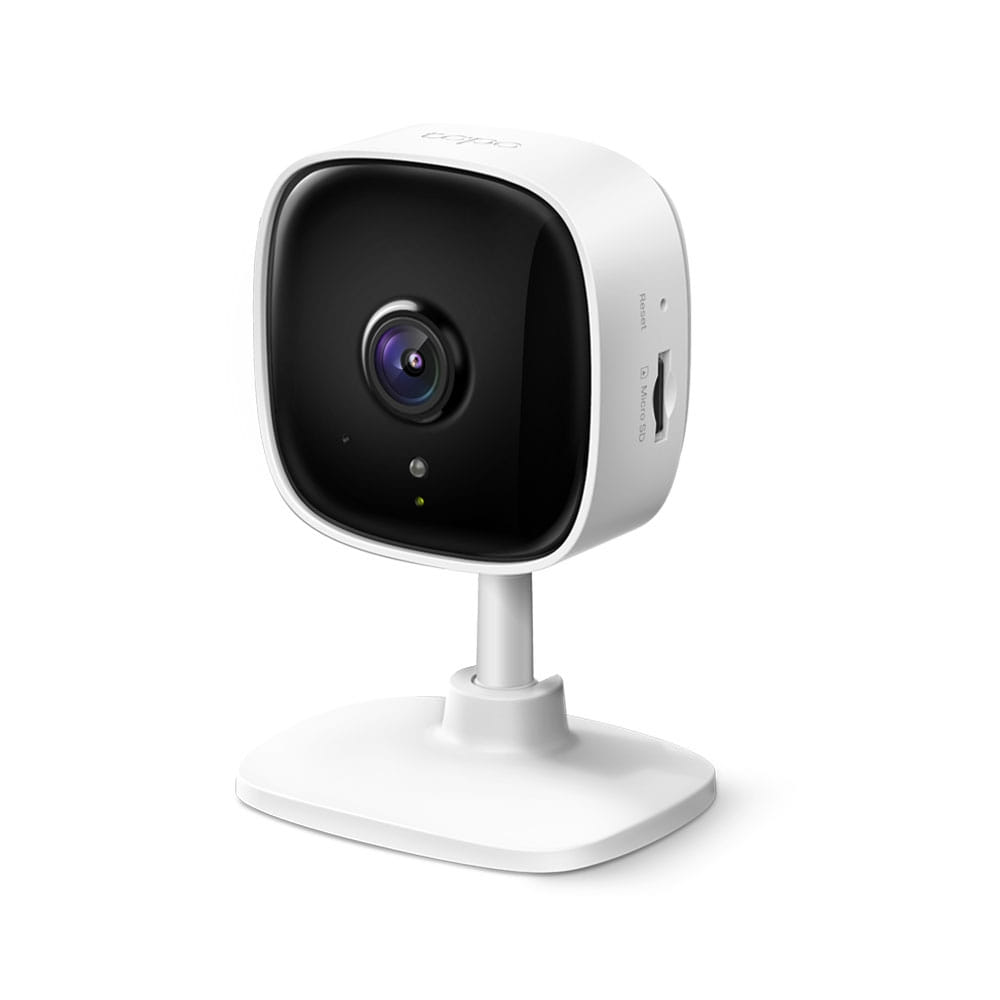

TP-Link Tapo TC60 Home Security Wi-Fi Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wireless
Day/night mode
Remote viewing
Infrared (IR) cut-off filter
Certification	CE, IC, RCM

Design
Form factor The shape or design of the product.	Cube
Mounting type Type of mounting e.g. wall mounting.	Desk/Wall
Product colour The colour e.g. red, blue, green, black, white.	Black, White
LED indicators

Camera
Field of view (FOV) angle	105°

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3.2 mm (1 / 3.2")

Lens system
Number of lenses The number of lenses installed in the device.	1
Auto focus Device focusing a camera or other piece of equipment automatically.
Maximum aperture number	2
Fixed focal length	3.3 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	9.1 m
LED type	IR
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1080 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	2 MP
Video compression formats	H.264
Supported video modes The video modes that can be displayed by the device.	1080p
Frame rate	15 fps
Privacy masking

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Audio system System used to play music or speech.	2-way
Built-in microphone Microphone that is found inside the product.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, DHCP, ARP, ICMP, DNS, NTP, HTTP, HTTPS, UDP, ONVIF, RTSP
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming method	Multicast

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)
Maximum memory card size The maximum size of memory card that can be used with this device.	128 GB

Ports & interfaces
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	128-bit AES, SSL/TLS, WPA, WPA2-PSK
Privacy protection
Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems.

Management features
Web-based management Using a website/web application to manage something.
Web browser
Firmware upgradeable
Reset button

Power
Power source type What the power source is.	AC, DC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
DC output voltage	9
DC output current	0.6 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements
Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device.	Android, iOS

Weight & dimensions
Width The measurement or extent of something from side to side.	67.6 mm
Depth The distance from the front to the back of something.	54.6 mm
Height The measurement of the product from head to foot or from base to top.	98.9 mm

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Mounting kit
Screws included
Manual

Technical details
Sustainability certificates	RoHS
