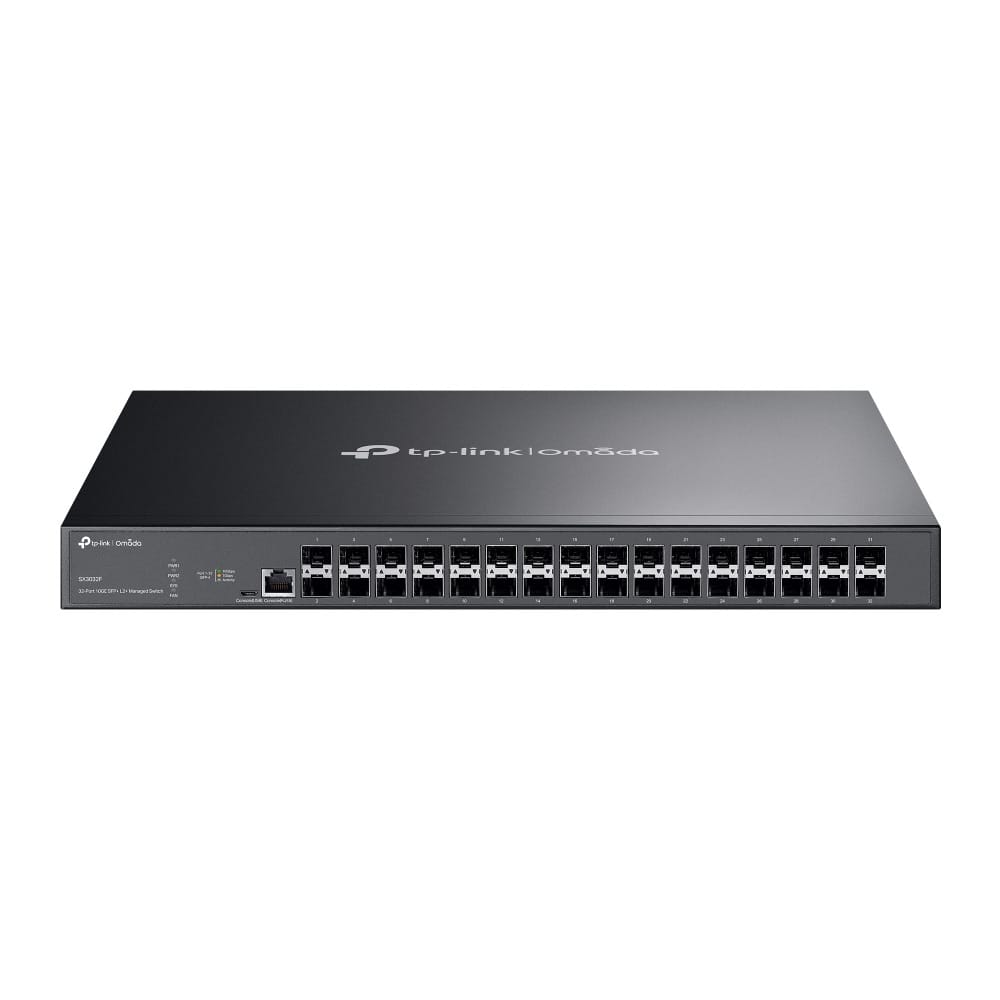

TP-Link SX3032F Omada 32-Port 10GE SFP+ L2+ Managed Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2+
Quality of Service (QoS) support
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
MIB support	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	1
Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.	32
Console port	RJ-45/Micro-USB

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
IPv4 routes	48
IPv6 routes	48
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	30

Data transmission
Switching capacity The data transfer capacity of the switch per second.	640 Gbit/s
Forwarding rate	240 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	32000 entries
Number of queues	8
Static route
Number of static routes	128
Number of IP interfaces	128
Jumbo frames support
Jumbo frames	9
Packet buffer memory	24 MB

Security
DHCP features	DHCP relay, DHCP server, DHCPv6 snooping
Access Control List (ACL)
IGMP snooping
Static port security
SSH/SSL support
Loop protection
IP-MAC-Port binding
Authentication	MAC-based authentication, Port-based authentication
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	AAA, TACACS+
Queue scheduling algorithms	Priority queuing (PQ), SP, Weighted Round Robin (WRR)

Multicast features
Multicast support
Number of multicast groups filtered	4000
Multicast Listener Discovery (MLD) snooping

Protocols
GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
IP Source Guard (IPSG)

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white.	Black
Redundant fans support
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	2 fan(s)

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max) The maximum amount of power used by the device.	49.4 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-5 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	330 mm
Height The measurement of the product from head to foot or from base to top.	44 mm

Packaging content
Cables included	Power
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
